Bulk Hose
search
  • Bulk Hose

Bulk Hose

€30.81
€27.73 Save 10%
Tax included

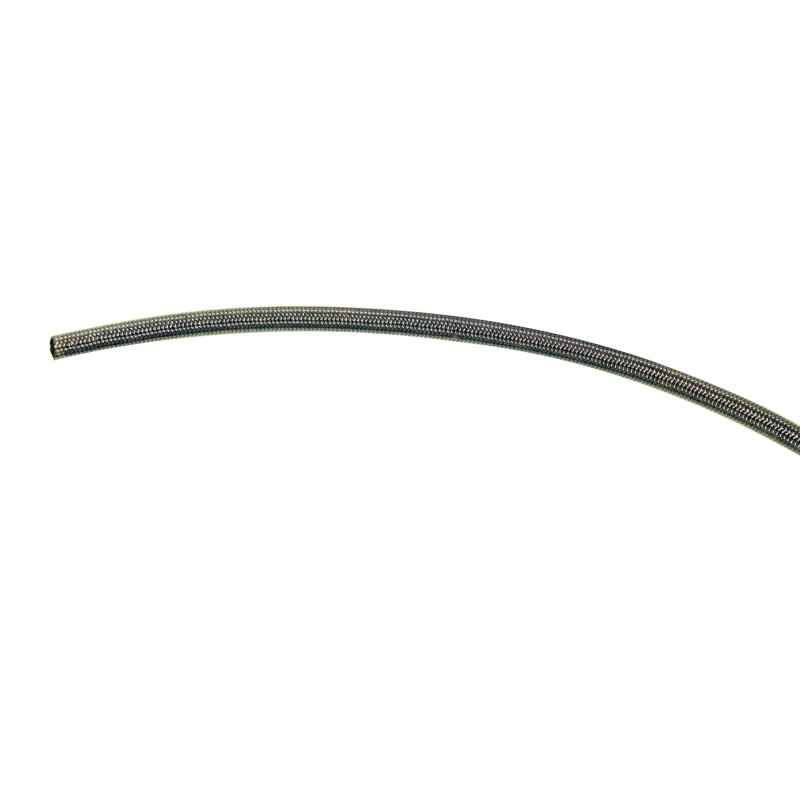

Series 600 hose (dash 02–04) for brake and clutch systems: PTFE inner tube compatible with all fluids, stainless-steel braided sheath resistant to corrosion, abrasion and fire, and an attractive UV‑resistant PVC cover. Designed to minimize expansion under pressure for a firmer pedal feel; available in multiple colors.
Quantity

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Product: 600 series hose, available in sizes -02 to -04 (with the very common 600-03 version).
  • Use: Designed for brake and clutch circuits; also suitable for hydraulic applications.
  • Construction: Stainless steel braided hose (outer braid) combined with a PTFE inner tube for optimal durability and compatibility.
  • Manufacturer / quality: Goodridge brake hoses incorporate a PTFE inner tube, a stainless steel braided sheath and a PVC outer coating for performance and protection.
  • Advantage of the PTFE inner tube: Inert material compatible with all hydraulic and brake fluids, resistant to extreme temperatures from -106 °C to 260 °C (‑158 °F to 500 °F) and protecting the brake system from moisture, unlike other materials such as nylon.
  • Role of the PVC coating: Provides an excellent aesthetic finish, protects expensive components from abrasion, makes cleaning easier and offers resistance to harmful UV rays.
  • Benefits of stainless steel braiding: Higher pressure rating, greater fire resistance and reduced volumetric expansion compared with other materials (including aramid), resulting in stronger and more consistent braking performance.
  • Performance in extreme conditions: High speeds, rapid gear changes and heavy braking place strong demands on competition hydraulic systems; the 600 series limits expansion under high pressure and temperature, ensuring consistent pedal pressure and firmer braking without a spongy feel.
  • Versatility and usage recommendations: Use dash -3 diameter for most braking systems; for clutches, prefer dash -3 or -4 depending on the application. The finer dash -2 increases line pressure and improves responsiveness.
  • Additional application areas: Abrasion- and fire-resistant, the 600 series hose is also recommended for gauge connections and fire extinguisher systems.
  • Compatibility: Perfect for all braking applications on 2- and 4-wheel vehicles, for track or road use.
  • Materials / technical features: Stainless steel braided outer sheath, PVC anti-abrasion coating and PTFE inner tube compatible with all brake and clutch fluids.
  • Aesthetic and practical options: The 600-03 hose is available with anti-abrasion sheaths in a wide range of colors, facilitating identification, cleaning and the cosmetic appearance of the installation.
  • Available colors for the 600-03 series: Black (BK), Blue (SB), Carbon (CB), Clear (CL), Printed Clear (CLG), Green (GN), Red (RD), Yellow (YE), Orange (OR) and Electric Blue (EB).
GOODRIDGE
17412078
7 Items

Data sheet

Taille de durite
-3
Longueur
200 cm
Marque
GOODRIDGE
Référence fournisseur
600-03CL-2
Couleur/finition
Incolore
Modèle
Build Your Own (BYO)
Nom du produit
Durite
Type
Au mètre
Unités
Pièce
Matière
PTFE, Acier inoxydable
