Race Series Short-Travel Hydraulic Lifters
search
  • Race Series Short-Travel Hydraulic Lifters
  • Race Series Short-Travel Hydraulic Lifters

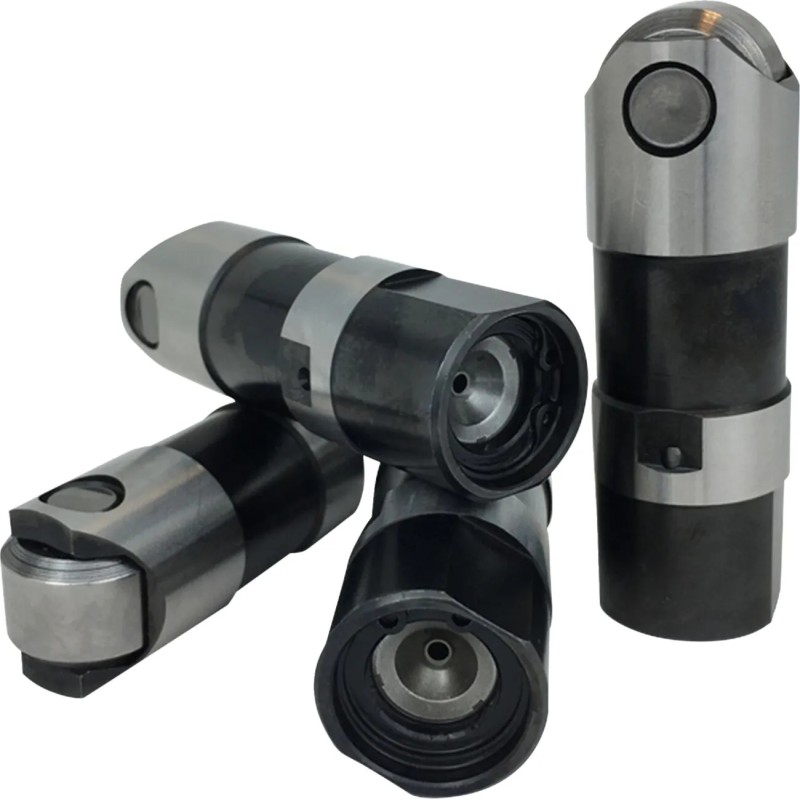

Race Series® Short-Travel Hydraulic Lifters

€398.46
€358.61 Save 10%
Tax included
Short-travel 0.115" lifter for high‑lift cams: raises rev limit by reducing valve float and oil aeration while remaining quiet. Machined steel body, needle bearing, high‑flow check valve; developed and tested on a Spin‑Tron and made in the USA. Preload 0.065–0.070"; fill before installation; compatible with Feuling pumps.
Quantity
Last items in stock

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • New reduced-travel lifter design offering 0.115" total movement instead of the 0.200" of a full-travel lifter.
  • Allows higher engine RPM by limiting valve float and valvetrain harmonics while maintaining quiet engine operation.
  • The reduced travel decreases the amount of oil required inside the lifter, which limits oil aeration on high-lift, fast-acting cam profiles.
  • When air is trapped in the lifter, the pushrod seat can become depressed as the lifter follows the cam lobe ramp after the aeration is compressed, resulting in a noisy lifter and degraded performance.
  • These short-travel lifters should be set with a preload between 0.065" and 0.070"; engine thermal expansion positions the operating preload at about half of the travel.
  • Machined steel body, engineered to tolerate high-lift cams and high spring seat pressures, with a more progressive unloading behavior.
  • Compatible with Feuling® HP+® or Race Series® oil pumps and suited for both street engines and drag-strip applications.
  • Ensures optimal oil flow to the top end, supports higher RPM, improves valvetrain stability, and reduces valve float to better exploit lift.
  • Equipped with a ground needle bearing paired with a heavily chrome-alloyed steel shaft for increased longevity and reduced friction.
  • Fitted with a high-flow, fast-response disc check valve for improved top-end responsiveness.
  • Designed and developed on a Spin-Tron test bench and validated under track conditions.
  • Manufactured in the United States.
  • Feuling® recommends manually bleeding each lifter before installation to remove air and ensure it is completely filled; ATF applied with an oil syringe works well for this.
  • Feuling® recommends Race Series® lifters for engines with spring seat pressures exceeding 185 lb (84 kg).
  • For quieter, higher-performing lifters, Feuling® recommends using a high-flow oil pump.
FEULING PARTS
09280109
3 Items

Data sheet

Application
Échappement, Admission
Size
+ 0,8435" - 0,844"
Style
Débattement court
Marque
FEULING PARTS
Référence fournisseur
4052ST
Modèle
Race Series®
Nom du produit
Poussoir
Type
Hydraulique
Unités
Lot de 4
Matière
Acier
