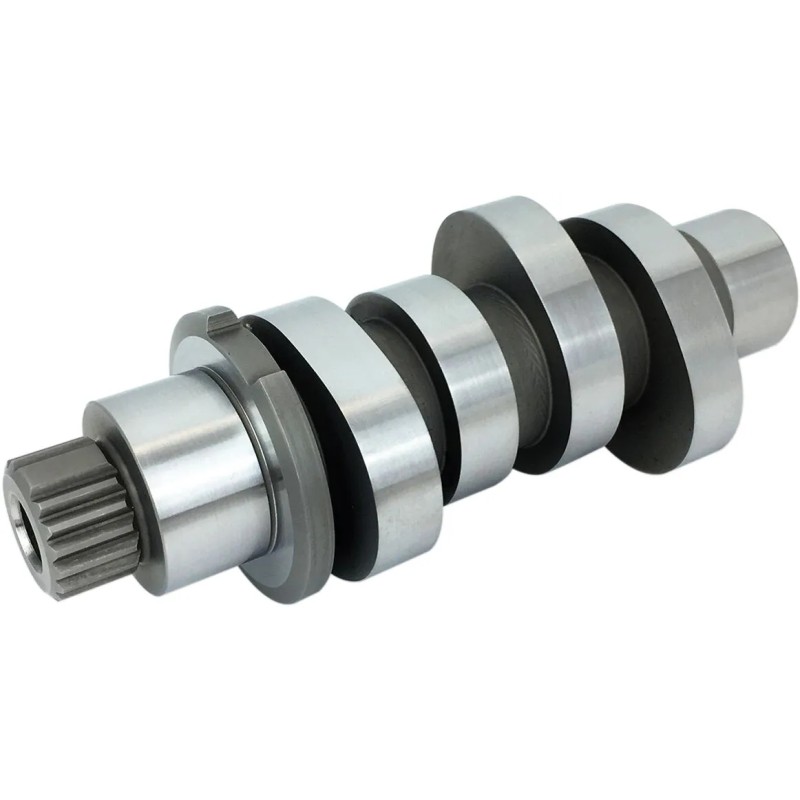

Reaper® 508 Cam

€360.45
€324.41 Save 10%
Tax included
Reaper 508 camshaft: increases power, torque, throttle response and acceleration from 2,250–5,900 rpm thanks to gentle ramp profiles that protect the valvetrain. Delivers an aggressive exhaust note and strong pull; dyno- and track-tested. Ideal for high-compression engines ≥114 cu in (1.87 L). Requires high‑lift springs and reinforced pushrods (one‑piece recommended). Made in the USA.
Quantity

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Increases power and torque across the useful RPM range, improving throttle response, acceleration and fuel economy
  • Cam profiles with gentle ramps preserve the valvetrain by reducing noise and excessive wear
  • Controlled and validated product: dyno-tested and track-proven
  • Grim Reaper: offers aggressive pull and a distinctive tone
  • This profile revs faster than the 521 grind, produces a more aggressive sound and better pull, but requires more careful tuning
  • The Reaper 508 profile performs excellently on 114" and larger engines, especially with an increased compression ratio
  • Ported/upgraded cylinder heads are not required, but they complement the camshaft and increase power across the entire rev range
  • The stock throttle body ensures a good power band; a high-flow throttle body can increase peak power
  • For best performance, a high-flow exhaust and a higher-flow air filter are recommended
  • Valve springs designed for high lift are required
  • Use of reinforced pushrods is highly recommended
  • Operating range: 2,250 to 5,900 rpm
  • Made in the USA
  • Camshaft specifications measured on-engine on a 0.050" lifter with a 1.61 rocker ratio
  • Due to the unstable design of this 4-valve engine—where a single rocker actuates two valve springs—Feuling strongly recommends one-piece pushrods rather than quick-adjust pushrods: this ensures maximum cam-to-valve lift, reduces valvetrain harmonics and limits issues associated with hydraulic lifters
  • EU: the Reaper 508 grind is especially suited to engines of 1.87 L and larger when fitted with an increased compression ratio
FEULING PARTS
09251283
5 Items

Data sheet

Sommet de came d'admission
98,5°
Sommet de came d'échappement
103,25°
Soulèvement d'admission
0,508"
Soulèvement d'admission au point mort haut
0,180"
Soulèvement de l'échappement
0,511"
Soulèvement de l'échappement au point mort haut
0,146"
Temps d'ouverture d'admission
237°
Temps d'ouverture d'échappement
241,5°
Application
Échappement, Admission
Affûtage
508 Series
Fermeture de l'admission
37°
Fermeture de l'échappement
17,5°
Ouverture de l'admission
20,5°
Ouverture de l'échappement
44°
Marque
FEULING PARTS
Référence fournisseur
1349
Modèle
Reaper
Nom du produit
Arbre à cames
Type
Chaîne
Unités
Pièce
