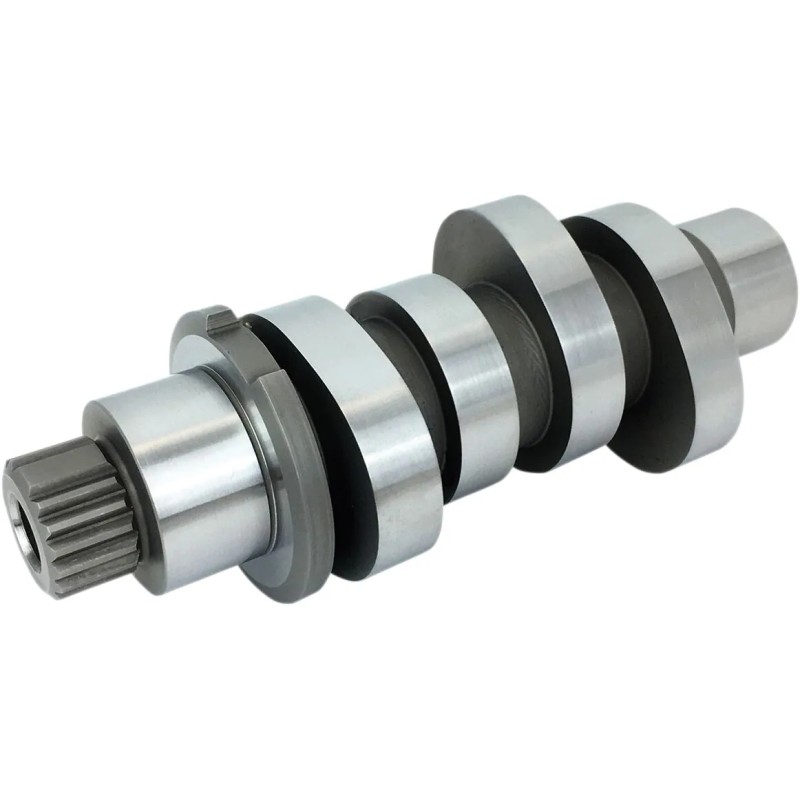

Reaper® 521 Cam

€361.72
€325.55 Save 10%
Tax included
Reaper 521: aggressive pull and a mean sound for high‑compression engines ≥114" (1.87 L). Powerband 2,250–6,250 RPM. Ported heads helpful but not required; stock throttle body fits, high‑flow TB can increase power. Recommended: high‑flow exhaust/air filter, high‑lift springs and reinforced one‑piece pushrods. Made in the USA; measured at .050" (ratio 1.61). Feuling recommends the Race Series oiling system.
Quantity

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Very aggressive pull combined with a distinctive tone: the Reaper 521 profile delivers remarkable performance on 114" and larger engines, especially when compression is increased.
  • Although modified/ported heads are not required, their use will showcase the camshaft and broaden the usable power across the entire RPM range.
  • The stock throttle body retains an excellent power band; replacing it with a high-flow throttle body can further increase available peak power.
  • For optimal performance, a high-flow exhaust system and a high-flow air filter are strongly recommended.
  • EU: Even in European specification, the Reaper 521 offers pronounced pulling power and a "mean" tone, ideal for 1.87 L (and larger) engines with raised compression.
  • Recommended RPM range: 2,250 to 6,250 rpm.
  • Made in the USA.
  • The specifications for this camshaft were measured directly on an engine, at the 0.050" lifter with a 1.61 rocker ratio.
  • Feuling recommends pairing the Reaper 521 camshaft with the Race Series oiling system for optimal lubrication and performance.
  • This profile requires the use of high-lift valve springs to operate correctly.
  • Installing reinforced one-piece pushrods is also strongly recommended to ensure reliability and mechanical integrity under load.
FEULING PARTS
09251210
9 Items

Data sheet

Sommet de came d'admission
98,5°
Sommet de came d'échappement
110°
Soulèvement d'admission
0,518"
Soulèvement d'admission au point mort haut
0,162"
Soulèvement de l'échappement
0,521"
Soulèvement de l'échappement au point mort haut
0,125"
Temps d'ouverture d'admission
231°
Temps d'ouverture d'échappement
243°
Application
Échappement, Admission
Affûtage
Série 521
Fermeture de l'admission
34°
Fermeture de l'échappement
11,5°
Ouverture de l'admission
17°
Ouverture de l'échappement
51,5°
Marque
FEULING PARTS
Référence fournisseur
1346
Modèle
Reaper
Nom du produit
Arbre à cames
Type
Chaîne
Unités
Pièce
