Race Series Camchest Kit with Short Travel Lifters
search
  • Race Series Camchest Kit with Short Travel Lifters

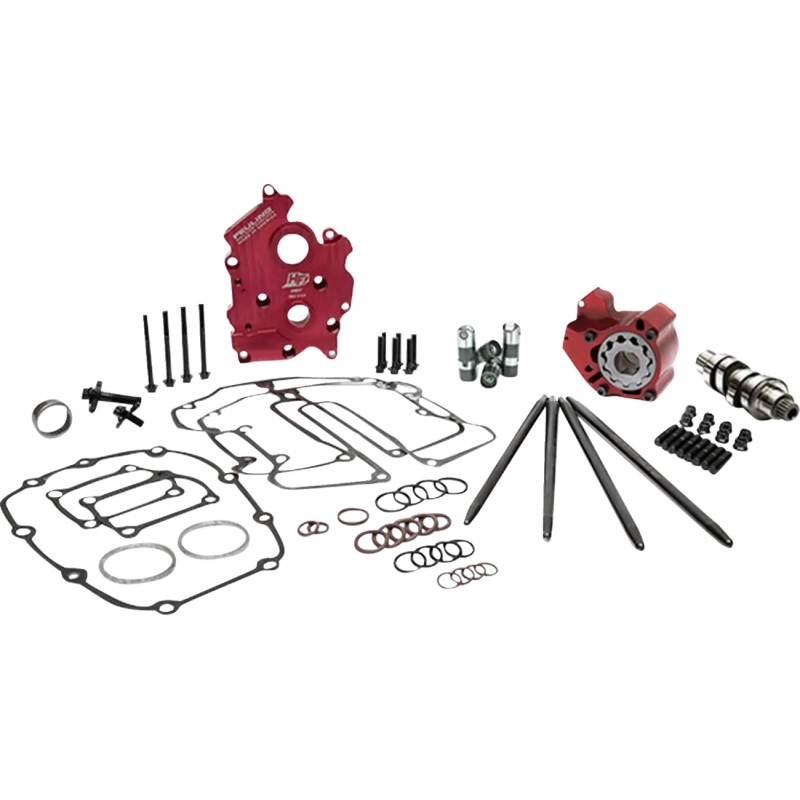

Race Series® Camchest Kit with Short Travel Lifters

€2,387.40
€2,148.66 Save 10%
Tax included
Complete kit including 487 Reaper Chain Drive camshaft, high‑flow cam plate, installation kit, Race Series Short Travel lifters, one‑piece rocker arm, Race Series oil pump, ARP studs and hardware. Direct fit for 114"/117" engines; 2,250–6,100 rpm range. Improved low‑end response, increased oil flow/pressure, reduced temperatures and measured gain +2 hp / +2 ft·lb.
Quantity
Last items in stock

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Complete kit including the 487 Reaper® Chain Drive camshaft, full installation kit, Race Series® Short Travel lifters, one-piece pushrods, Race Series® oil pump, high-flow camplate, ARP studs and nuts, plus the necessary hardware for the camplate and oil pump.
  • 487 Reaper® camshaft engineered for superior performance.
  • Direct-fit to the stock location for simplified installation.
  • Chain-driven camshaft for increased reliability.
  • Compatible with 114" and 117" engines.
  • Particularly well-suited to bore modifications and/or increased compression ratios.
  • Maintains good low-end power and produces strong torque above 2,950 rpm compared to the stock configuration.
  • Useful RPM range: 2,250 - 6,100 rpm.
  • Cam overlap: 38°.
  • Camshaft specifications measured under engine conditions, on the lifter @ 0.050 inch with a rocker ratio of 1.61.
  • Camshaft installation kit included, featuring the camshaft bearing, camshaft/crankshaft hardware, and a gasket and O-ring kit.
  • Race Series® Short Travel lifters supplied — hydraulic roller lifters with short travel, standard outer diameter (0.8420–0.8423).
  • These lifters are designed for a total travel of 0.115 inch.
  • One-piece pushrod included: HP+ version with 0.165 inch wall and length increased by +0.040 inch.
  • One-piece pushrod manufactured from a sturdy 7/16 inch diameter tube, 0.165 inch wall thickness, with precise concentricity, heat treatment and black oxide finish for optimal durability.
  • Race Series® oil pump included — designed to increase oil pressure, pickup volume and engine oil flow.
  • 30% increase in pressure-side transmission volume compared to the stock pump.
  • 53% more scavenging gear volume compared to stock.
  • 42% more scavenging volume thanks to passages and ports matched to the engine case.
  • 46% more oil volume directed to the crankshaft and connecting rods.
  • Engine temperatures reduced by approximately 15° to 25° thanks to improved oil circulation.
  • Oil temperatures reduced by approximately 15° to 30°.
  • Generates between 10 and 30 PSI of additional oil pressure depending on conditions.
  • Helps reduce wet sumping, blow-by and oil deposits on air filters.
  • Pump equipped with magnets to protect the gears and relief valve from ferrous particles.
  • Measured rear-wheel gain: +2 hp and +2 ft·lb of torque.
  • FEULING tests showing a 50% reduction in oil level in the engine crankcase.
  • High-flow camplate included, mounts to the stock location for simple fitment.
  • Camplate machined from 7075 aluminum for optimal strength and lightness.
  • Product made in the USA.
  • Feuling does not recommend tuning that exceeds original emissions standards.
FEULING PARTS
09251623
3 Items

Data sheet

Sommet de came d'admission
98,5°
Sommet de came d'échappement
103,25°
Soulèvement d'admission
0,478"
Soulèvement d'admission au point mort haut
0,180"
Soulèvement de l'échappement
0,487"
Soulèvement de l'échappement au point mort haut
0,146"
Temps d'ouverture d'admission
237°
Temps d'ouverture d'échappement
241,5°
Application
Refroidi par eau
Affûtage
487 Series
Fermeture de l'admission
37°
Fermeture de l'échappement
17,5°
Ouverture de l'admission
20,5°
Ouverture de l'échappement
44°
Marque
FEULING PARTS
Référence fournisseur
7273ST
Caractéristiques
Poussoirs à course courte
Modèle
Reaper
Nom du produit
Kit carter moteur
Type
Chaîne de distribution
Unités
Kit
