Race Series Camchest Kit with Short Travel Lifters
search
  • Race Series Camchest Kit with Short Travel Lifters

Race Series® Camchest Kit with Short Travel Lifters

€2,387.40
€2,148.66 Save 10%
Tax included
Complete Feuling kit including the 487 Reaper camshaft (bolt‑on or chain‑drive, 2,250–6,100 rpm for 114" / 117" engines), installation kit, Race Series short‑travel lifters, HP+ one‑piece pushrods, Race Series high‑flow oil pump, cam plate, ARP studs and fasteners. Optimizes low‑end performance and acceleration; cools and increases oil pressure and volume. Made in the USA.
Quantity

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

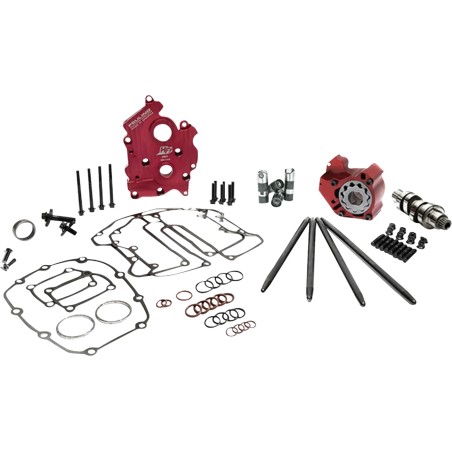

  • Kit contents: 487 Reaper® Chain Drive camshaft, camshaft installation kit, Race Series® Short Travel lifters, one‑piece pushrods, Race Series® oil pump, high‑flow cam plate, ARP studs and nuts, plus hardware for the cam plate and oil pump.
  • Camshaft: 487 Reaper® model
  • Mounting: bolt‑on
  • Cam drive: chain‑driven
  • Optimal RPM range: 2,250–6,100 rpm
  • Compatibility: designed for 114" and 117" engines
  • Engine response: responds very favorably to increases in bore and/or compression ratio
  • Behavior: retains low‑end power and provides strong acceleration above 2,950 rpm compared with stock
  • Measured specifications: camshaft specs recorded on an engine at the lifter @ 0.050" with a 1.61 rocker ratio
  • Camshaft installation kit: includes cam bearing, cam/crank fasteners and seal/o‑ring kit
  • Race Series® Short Travel lifters: machined‑steel hydraulic lifters with 0.115" travel
  • One‑piece pushrods: HP+ one‑piece design with 0.165" wall thickness and +0.040" oversize
  • Race Series® oil pump: Chrome Moly gerotor gears, high‑flow 2.250 version
  • Pump performance: +27% pressure and gear‑recovery volume versus stock
  • Pickup capacity: +42% pickup volume thanks to passages, port sizes and orifices matched to the engine case
  • Oil distribution: +46% additional oil volume directed to the crank and rods
  • Engine cooling: engine temperatures reduced by 15° to 25°
  • Oil cooling: oil temperatures lowered by 15° to 30°
  • Oil pressure: increase of 10 to 30 PSI
  • Internal benefits: reduced wet sumping, blow‑by and oil‑soaked air filters
  • Internal protection: integrated magnets in the oil pump to protect the gears and relief valve
  • FEULING® test results: 50% reduction in oil level in the engine crankcase during tests
  • High‑flow cam plate: potential gains of approximately 2 horsepower and 2 ft·lb of torque at the rear wheel
  • Origin: made in the USA
  • Manufacturer recommendation: Feuling does not recommend adjustments that exceed stock emissions standards
FEULING PARTS
09251621
5 Items

Data sheet

Sommet de came d'admission
98,5°
Sommet de came d'échappement
103,25°
Soulèvement d'admission
0,478"
Soulèvement d'admission au point mort haut
0,180"
Soulèvement de l'échappement
0,487"
Soulèvement de l'échappement au point mort haut
0,146"
Temps d'ouverture d'admission
237°
Temps d'ouverture d'échappement
241,5°
Application
Refroidi par huile
Affûtage
487 Series
Fermeture de l'admission
37°
Fermeture de l'échappement
17,5°
Ouverture de l'admission
20,5°
Ouverture de l'échappement
44°
Marque
FEULING PARTS
Référence fournisseur
7272ST
Caractéristiques
Poussoirs à course courte
Modèle
Reaper
Nom du produit
Kit carter moteur
Type
Chaîne de distribution
Unités
Kit
