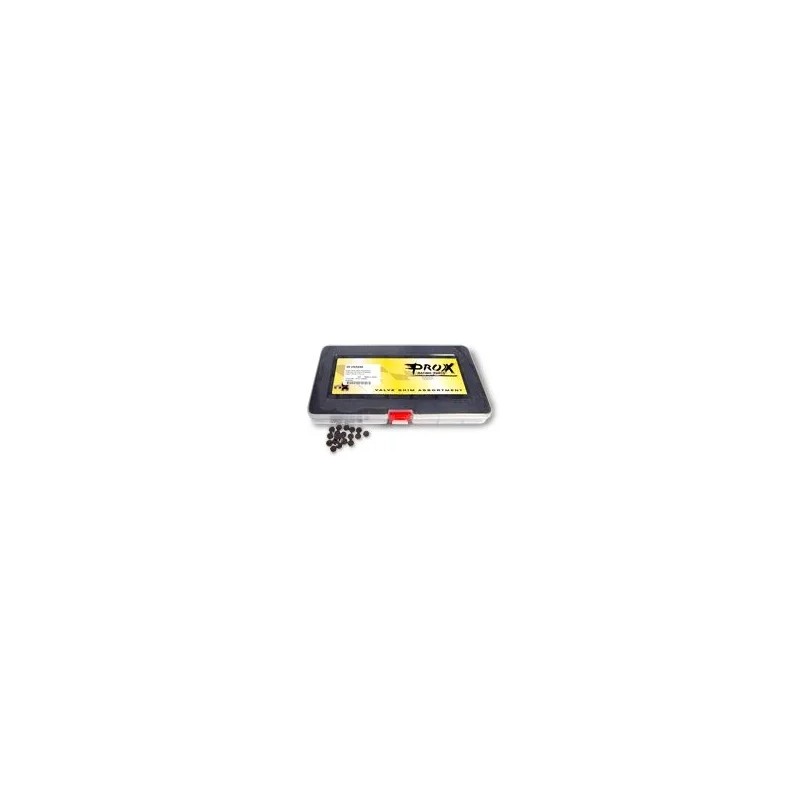

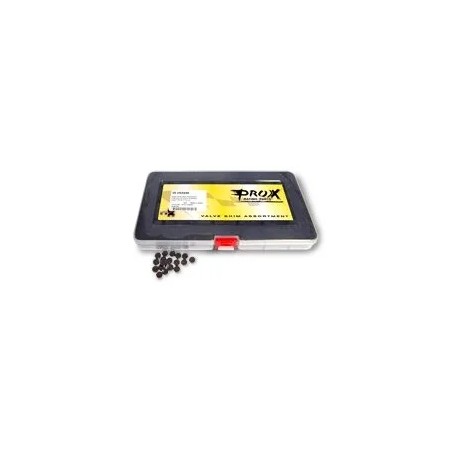

Replacement Shim
search
  • Replacement Shim
  • Replacement Shim
  • Replacement Shim

Replacement Shim

€10.69
€9.62 Save 10%
Tax included
Replacement pads (outer diameters: 7.48, 8.90, 9.48 and 10.00 mm) sold in five‑packs to resellers and individually to customers, available in an assorted box or as a five‑pack. Economical and easy to replace: each kit contains three shims of each thickness, with increments of 0.05 or 0.04 mm.
Quantity

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • 7.48 mm replacement shims.
  • Refills are sold in packs of five for resellers and individually for end customers.
  • Available in a fully assorted box as well as in a pack of five refills.
  • Cost-effective replacement solution, simple and quick to install to replace expensive original pads.
  • Kit #0926-1018: 7.48 mm outer diameter shims, three pieces of each thickness from 1.20 mm to 3.50 mm in 0.05 mm increments.
  • Kit #0926-1470: 7.48 mm outer diameter shims, three pieces of each thickness from 1.225 mm to 3.475 mm in 0.05 mm increments.
  • Kit #0926-0941: 9.48 mm outer diameter shims, three pieces of each thickness from 1.20 mm to 3.50 mm in 0.05 mm increments.
  • Kit #0926-1473: 9.48 mm outer diameter shims, three pieces of each thickness from 1.225 mm to 3.475 mm in 0.05 mm increments.
  • Kit #0926-0917: 8.90 mm outer diameter shims, three pieces of each thickness from 1.72 mm to 2.60 mm in 0.04 mm increments.
  • Kit #0926-1472: 8.90 mm outer diameter shims, three pieces of each thickness from 1.74 mm to 2.58 mm in 0.04 mm increments.
  • Kit #0926-0989: 10.00 mm outer diameter shims, three pieces of each thickness from 1.85 mm to 3.20 mm in 0.05 mm increments.
  • Kit #0926-1471: 10.00 mm outer diameter shims, three pieces of each thickness from 1.875 mm to 3.175 mm in 0.05 mm increments.
PROX
09261612
5 Items

Data sheet

Épaisseur de la pastille de soupape
3,325 mm
Diamètre extérieur
9,48 mm
Marque
PROX
Référence fournisseur
29.948332.5
Nom du produit
Rondelles de calage
Type
Soupape
Unités
Lot de 5
