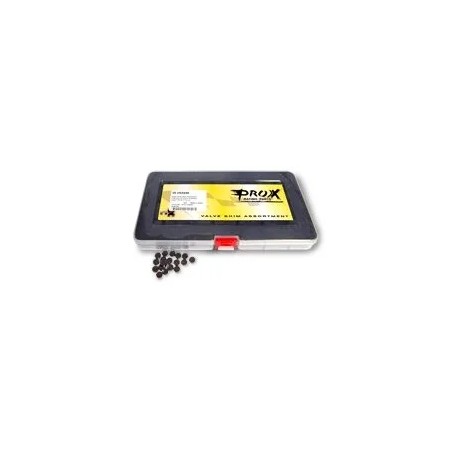

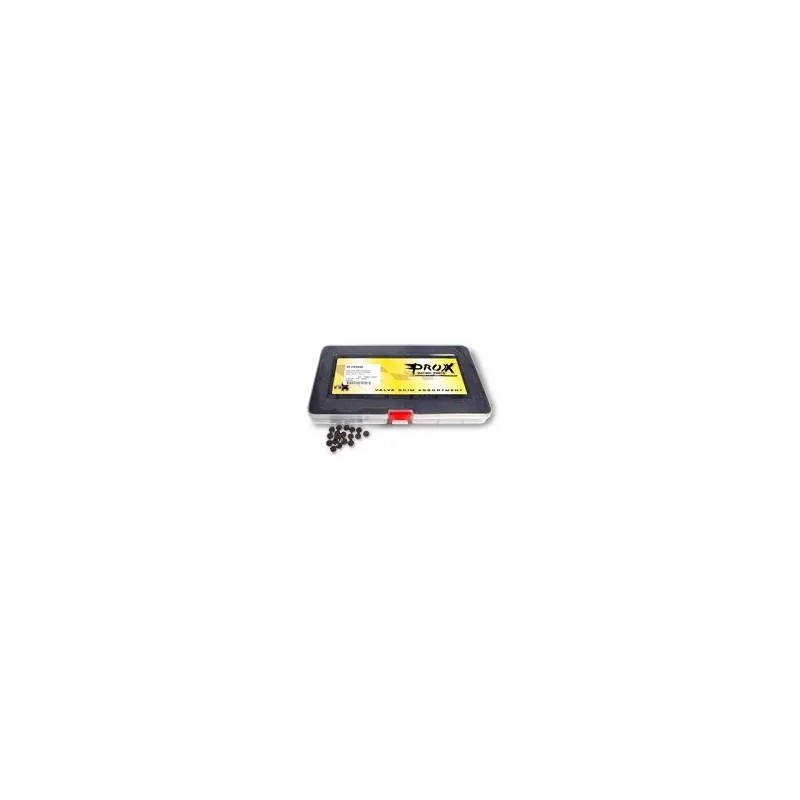

Replacement Shim
search
  • Replacement Shim
  • Replacement Shim
  • Replacement Shim

Replacement Shim

€10.69
€9.62 Save 10%
Tax included
Replacement discs (diameters 7.48 / 8.90 / 9.48 / 10.00 mm) sold in packs of five to resellers and individually to customers, available in an assorted box or five-pack. Economical and easy replacement: kits (#0926-0917, 0941, 0989, 1018, 1470–1473, 1471–1472) containing three shims of each thickness in 0.04–0.05 mm increments.
Quantity

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • 7.48 mm replacement shims
  • Refills are offered in packs of five for resellers, and individually for end customers
  • Available in a fully assorted box or in a replacement pack of five
  • Cost-effective, easy-to-install replacement solution for expensive original pads
  • Kit No. 0926-1018: shims with a 7.48 mm outer diameter, three pieces of each size from 1.20 mm to 3.50 mm in 0.05 mm increments
  • Kit No. 0926-1470: shims with a 7.48 mm outer diameter, three pieces of each size from 1.225 mm to 3.475 mm in 0.05 mm increments
  • Kit No. 0926-0941: shims with a 9.48 mm outer diameter, three pieces of each size from 1.20 mm to 3.50 mm in 0.05 mm increments
  • Kit No. 0926-1473: shims with a 9.48 mm outer diameter, three pieces of each size from 1.225 mm to 3.475 mm in 0.05 mm increments
  • Kit No. 0926-0917: shims with an 8.90 mm outer diameter, three pieces of each size from 1.72 mm to 2.60 mm in 0.04 mm increments
  • Kit No. 0926-1472: shims with an 8.90 mm outer diameter, three pieces of each size from 1.74 mm to 2.58 mm in 0.04 mm increments
  • Kit No. 0926-0989: shims with a 10.00 mm outer diameter, three pieces of each size from 1.85 mm to 3.20 mm in 0.05 mm increments
  • Kit No. 0926-1471: shims with a 10.00 mm outer diameter, three pieces of each size from 1.875 mm to 3.175 mm in 0.05 mm increments
PROX
09261545
15 Items

Data sheet

Épaisseur de la pastille de soupape
2,325 mm
Diamètre extérieur
7,48 mm
Marque
PROX
Référence fournisseur
29.748232.5
Nom du produit
Rondelles de calage
Type
Soupape
Unités
Lot de 5
