Replacement Shim

€10.69
€9.62 Save 10%
Tax included

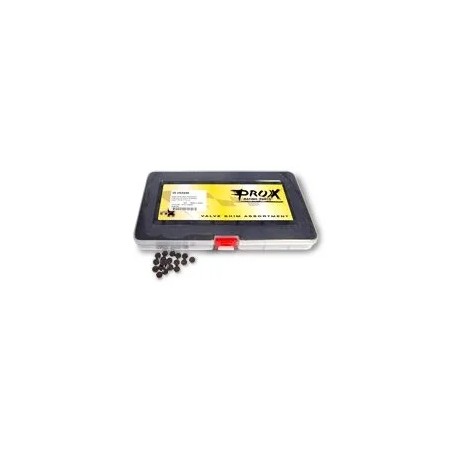

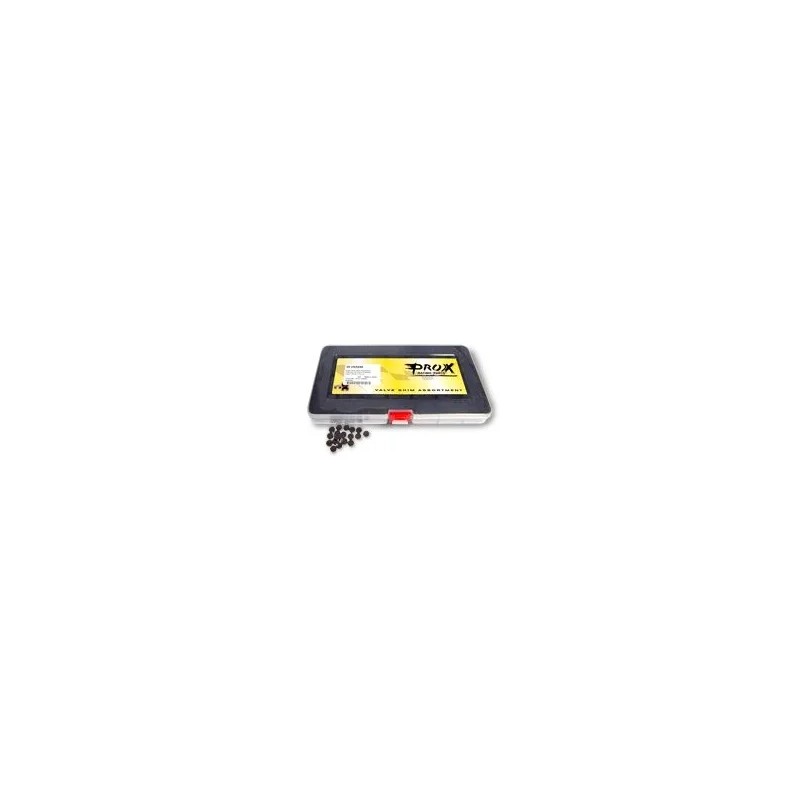

Replacement pads (outer diameter 7.48–10.00 mm) available in an assorted box or in packs of five (sold in 5‑packs to resellers; individually to customers). An economical, easy-to-install replacement for the original pads. Different kits include three shims of each size across precise ranges with increments of 0.04–0.05 mm.
Quantity

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Replacement pads with a diameter of 7.48 mm.
  • Refills are sold in packs of five for resellers and individually for end customers.
  • Available as a fully assorted box or in a pack of five refills.
  • Cost-effective and easy-to-install replacement solution when the original pads are too expensive.
  • Kit No. 0926-1018: shims with an outer diameter of 7.48 mm, three of each size from 1.20 mm to 3.50 mm in 0.05 mm increments.
  • Kit No. 0926-1470: shims with an outer diameter of 7.48 mm, three of each size from 1.225 mm to 3.475 mm in 0.05 mm increments.
  • Kit No. 0926-0941: shims with an outer diameter of 9.48 mm, three of each size from 1.20 mm to 3.50 mm in 0.05 mm increments.
  • Kit No. 0926-1473: shims with an outer diameter of 9.48 mm, three of each size from 1.225 mm to 3.475 mm in 0.05 mm increments.
  • Kit No. 0926-0917: shims with an outer diameter of 8.90 mm, three of each size from 1.72 mm to 2.60 mm in 0.04 mm increments.
  • Kit No. 0926-1472: shims with an outer diameter of 8.90 mm, three of each size from 1.74 mm to 2.58 mm in 0.04 mm increments.
  • Kit No. 0926-0989: shims with an outer diameter of 10.00 mm, three of each size from 1.85 mm to 3.20 mm in 0.05 mm increments.
  • Kit No. 0926-1471: shims with an outer diameter of 10.00 mm, three of each size from 1.875 mm to 3.175 mm in 0.05 mm increments.
PROX
09261537
9 Items

Data sheet

Épaisseur de la pastille de soupape
1,925 mm
Diamètre extérieur
7,48 mm
Marque
PROX
Référence fournisseur
29.748192.5
Nom du produit
Rondelles de calage
Type
Soupape
Unités
Lot de 5
