Econo Beehive Valve Spring Kit
search
  • Econo Beehive Valve Spring Kit
  • Econo Beehive Valve Spring Kit

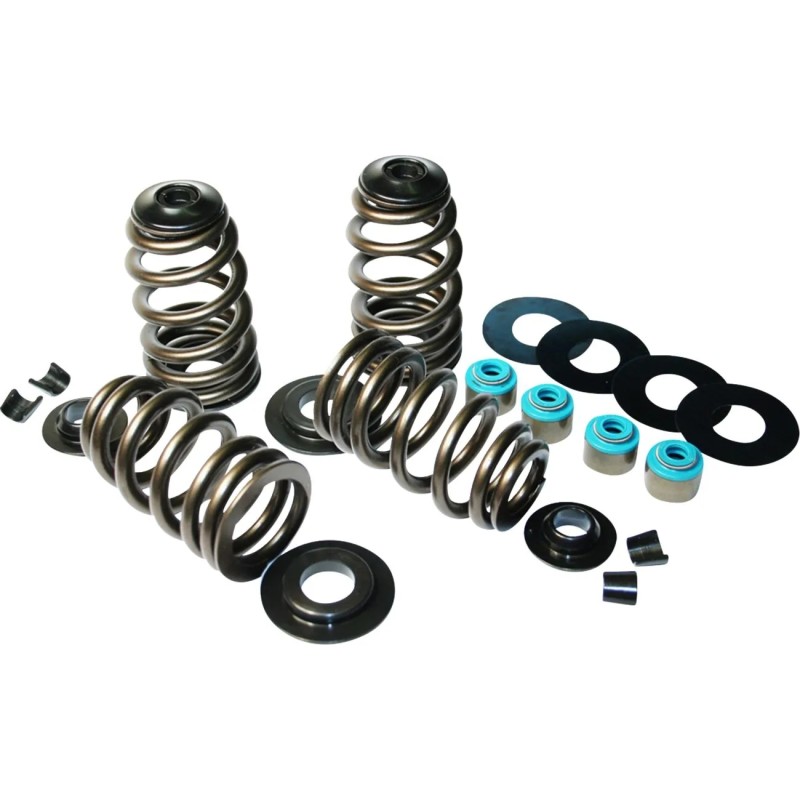

Econo Beehive® Valve Spring Kit

€302.55
€272.29 Save 10%
Tax included
Econo BeeHive® springs made from treated chromoly oval-tapered wire, hand-measured and labeled; smaller, lighter retainers to reduce valve mass and improve responsiveness. Complete kit (7° steel/titanium retainers, machined chromoly seats, shims, keepers, Viton® seals), race-tested, made in the USA. Direct replacement for '84–'04 Big Twin / '86–'03 XL (≤0.574") and '05–'17 Twin Cam (≤0.585").
Quantity

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Conical oval wire design made from chromoly, heat-treated for increased strength and durability
  • Each spring is hand-measured and labeled according to its winding and the required open height
  • Uses a significantly smaller, lighter retainer spring to reduce valve mass, promoting quicker revving and smoother motion
  • Bench-tested and validated under track conditions
  • The kit includes: Econo BeeHive® valve springs, lightweight 7° steel or titanium retainers, machined and heat‑treated chromoly spring seats, shims, keepers, and a set of premium Viton® valve stem seals with spring-type wiper system
  • Accepts lifts up to 0.585"
  • Seat pressure / installed height information:
  • 183 lb at 1.760" (0.510" lift)
  • 175 lb at 1.785" (0.535" lift)
  • 172 lb at 1.803" (0.553" lift)
  • 165 lb at 1.825" (0.574" lift)
  • 163 lb at 1.835" (0.585" lift)
  • 380 lb at 1.250" open height
  • Spring coil bind observed at 1.180"
  • Made in the USA
  • EU: Designed to meet the demands of high-performance engines equipped with cams up to 1.486 cm lift
  • Feuling® BeeHive® valve springs must be installed at the correct open height, observing the maximum lift and specified open height
  • The Econo BeeHive® kit is a direct replacement requiring no machining or rocker cover modification, for cams up to 0.574" lift on '84-'04 Big Twin and '86-'03 XL models, and up to 0.585" lift on '05-'17 Twin Cam
  • EU: Seat installed height; 83.00 kg at 4.50 cm (lift 1.30 cm)
  • EU: 79.38 kg at 4.56 cm (lift 1.36 cm)
  • EU: 78.02 kg at 4.61 cm (lift 1.41 cm)
  • EU: 74.84 kg at 4.66 cm (lift 1.46 cm)
  • EU: 72.57 kg at 4.69 cm (lift 1.49 cm)
  • EU: 172.37 kg at 3.20 cm open height, coils seated at 3.02 cm
  • EU: The Econo BeeHive® kits are direct replacements requiring no machining or rocker cover adjustment, compatible with cams up to 1.458 cm lift for '84-'04 Big Twin and '86-'03 XL, and up to 0.585" lift for '05-'17 Twin Cam
FEULING PARTS
09261468
15 Items

Data sheet

Matériau du collier
Acier
Application
Échappement, Admission
Style
Ressort arrondi Beehive®
Marque
FEULING PARTS
Référence fournisseur
1121
Modèle
Econo Beehive
Nom du produit
Kit ressorts
Type
Soupape
Unités
Kit
Matière
Chromoly
