Cam Kit
search
  • Cam Kit

Cam Kit

€811.12
€730.01 Save 10%
Tax included

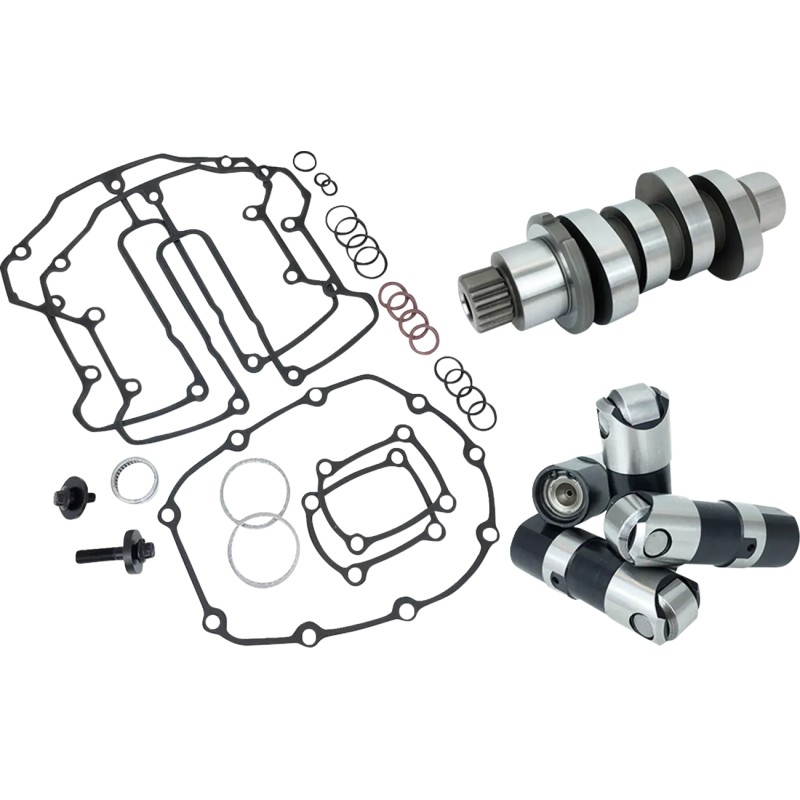

Kit including the 487 Reaper camshaft (bolt-on, chain-driven, 38° overlap) for 114 cu in and 117 cu in engines, with installation kit and Race Series hydraulic lifters. Preserves low-end performance and delivers strong acceleration above 2,950 rpm. Made in the USA; heavy-duty pushrods, High Lift springs and Feuling kit recommended; Feuling advises against tuning beyond emissions standards.
Quantity
Out-of-Stock

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Includes the 487 Reaper Chain Drive camshaft, the complete installation kit, and Race Series lifters.
  • 487 Reaper camshaft model, engineered for increased performance.
  • Bolt-on installation for a robust, reliable fit.
  • Camshaft drive by chain (Chain Drive).
  • 38° overlap for optimized engine behavior.
  • Recommended RPM range: 2,250 to 6,100 rpm.
  • Designed for 114 cu in and 117 cu in engines.
  • Responds very positively to increased bore and/or compression gains.
  • Maintains good low-end power while delivering strong acceleration above 2,950 rpm compared to stock setup.
  • Camshaft specs were measured at 0.050" tappet (lifter) lift using a 1.61 rocker ratio.
  • Cam installation kit included for a complete fitment.
  • The kit contains the camshaft bearing, cam/crank fasteners, and a set of gaskets and O-rings.
  • Allows use of the original one-piece pushrods or optional installation of Feuling® heavy duty HP+® 0.165" wall one-piece pushrods.
  • Race Series lifters included to complement the camshaft.
  • Hydraulic lifters offering a total travel of 0.200".
  • Designed with a slower bleed-down rate to support high valve spring pressures.
  • Help raise the RPM at which valve float occurs and provide increased clearance for rollers on aggressive-ramp cams.
  • Also provide improved clearance for the exhaust cam lobe boss on pre‑Milwaukee‑Eight models.
  • Made in the USA for quality and traceability.
  • Use of heavy-duty one-piece pushrods is strongly recommended for optimal durability.
  • The Feuling® mounting hardware kit is recommended to help prevent cylinder head cracks.
  • A high-flow exhaust system and a high-performance air filter are strongly recommended to fully realize the performance.
  • High-lift valve springs are required on stock cylinder heads; Screamin' Eagle heads are equipped but should be checked before installation.
  • Feuling® does not recommend tuning beyond the original emissions standards.
FEULING PARTS
09251619

Data sheet

Sommet de came d'admission
98,5°
Sommet de came d'échappement
103,25°
Soulèvement d'admission
0,478"
Soulèvement d'admission au point mort haut
0,180"
Soulèvement de l'échappement
0,487"
Soulèvement de l'échappement au point mort haut
0,146"
Temps d'ouverture d'admission
237°
Temps d'ouverture d'échappement
241,5°
Affûtage
487 Series
Fermeture de l'admission
37°
Fermeture de l'échappement
17,5°
Ouverture de l'admission
20,5°
Ouverture de l'échappement
44°
Marque
FEULING PARTS
Référence fournisseur
1462
Modèle
Reaper
Nom du produit
Kit arbre à cames
Type
Chaîne de distribution
Unités
Kit
