Race Series Camchest Kit
search
  • Race Series Camchest Kit

Race Series® Camchest Kit

€2,387.40
Tax included

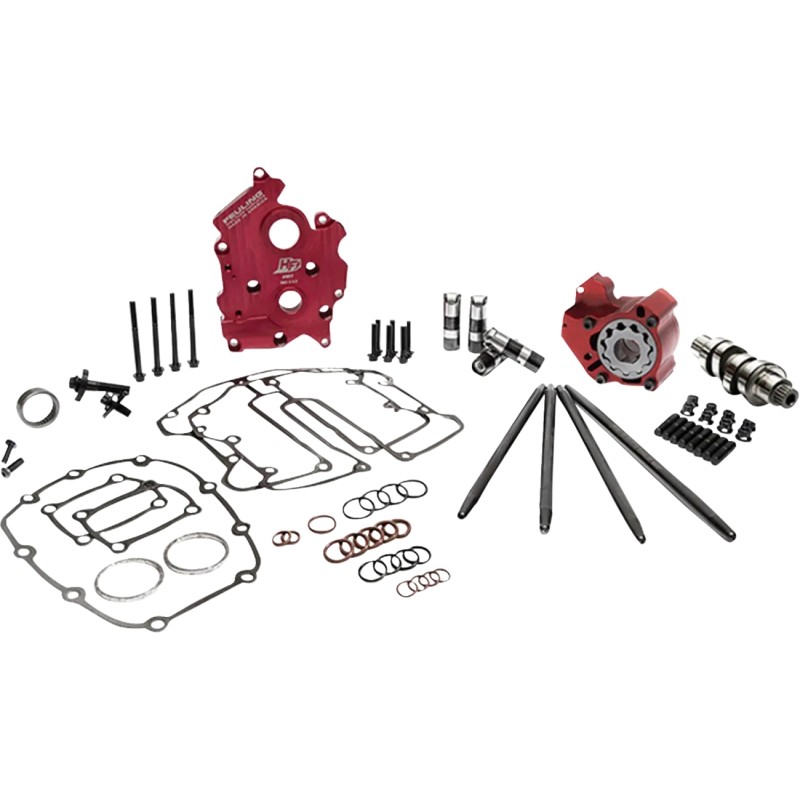

Complete Feuling kit including 487 Reaper chain-driven camshaft, high‑flow cam plate, Race Series lifters, one‑piece rocker arm shaft, Race Series oil pump, bearings, gaskets and ARP fasteners. For 114" and 117" engines, 38° overlap, 2,250–6,100 rpm; retains low‑end power and improves acceleration above 2,950 rpm. Made in the USA.
Quantity
Out-of-Stock

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Includes: 487 Reaper® Chain Drive camshaft, complete installation kit, Race Series® lifters, one-piece pushrod, Race Series® oil pump, high-flow cam plate, ARP studs and nuts, and hardware for the cam plate and oil pump
  • 487 Reaper® camshaft
  • Camshaft chain drive
  • Overlap of 38°
  • Recommended RPM range: 2,250 to 6,100 rpm
  • Designed for 114" and 117" engines
  • Responds especially well to increases in bore and/or compression ratio
  • Maintains low-end power and improves acceleration above 2,950 rpm compared to stock configuration
  • Camshaft specifications measured on the engine: recorded at the lifter at 0.050" with a rocker ratio of 1.61
  • Camshaft installation kit included
  • The installation kit includes the camshaft bearing, camshaft and crankshaft fasteners, and the seal and O-ring kit
  • Race Series® lifters supplied
  • Full-travel hydraulic machined-steel lifters, with 0.200" travel
  • One-piece pushrod
  • Pushrod: reinforced HP+ tubing, 7/16" diameter, 0.165" wall thickness, excellent concentricity, heat-treated and black oxide finish
  • Race Series® oil pump included
  • Chrome Moly gerotor gear pump, high-flow 2.250
  • +27% pressure and gear scavenging volume compared to stock
  • +42% suction volume thanks to passages, port sizes and openings matched to the engine case
  • +46% additional oil volume for the crankshaft and connecting rod
  • Engine temperatures reduced by 15° to 25°
  • Oil temperatures decreased by 15° to 30°
  • Increases oil pressure by 10 to 30 PSI
  • Reduces wet sumping, blow-by and oil fouling of air filters
  • Protective magnets to preserve gears and integrated pressure-relief valve
  • FEULING tests: 50% reduction in oil level in the crankcase
  • High-flow cam plate included
  • Can yield approximately +2 hp and +2 ft·lb of torque at the rear wheel
  • Manufacture: product made in the USA
  • Manufacturer note: Feuling does not recommend modifications that exceed original emissions standards
FEULING PARTS
09251620

Data sheet

Sommet de came d'admission
98,5°
Sommet de came d'échappement
103,25°
Soulèvement d'admission
0,478"
Soulèvement d'admission au point mort haut
0,180"
Soulèvement de l'échappement
0,487"
Soulèvement de l'échappement au point mort haut
0,146"
Temps d'ouverture d'admission
237°
Temps d'ouverture d'échappement
241,5°
Application
Refroidi par huile
Affûtage
487 Series
Fermeture de l'admission
37°
Fermeture de l'échappement
17,5°
Ouverture de l'admission
20,5°
Ouverture de l'échappement
44°
Marque
FEULING PARTS
Référence fournisseur
7272
Modèle
Reaper
Nom du produit
Kit carter moteur
Type
Chaîne de distribution
Unités
Kit
