High Load Beehive® Valve Springs

€483.19
Tax included
Feuling BeeHive® high‑load spring kit — Made in the USA: conical oval wire, nitrided and Nano Peen™‑treated; lightweight retainers; 10° micro‑polished titanium cups; machined chromoly seats; shims, keepers and premium Viton seals included. Designed for high‑performance engines (up to 0.750" lift); track‑ and dyno‑tested. Direct‑fit, no machining required for Big Twin '84–'04, XL '86–'03 (≤0.574") and Twin Cam '05–'17 (≤0.700").
Quantity

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Made from unstressed, tapered oval-section wire with surface nitriding, shot-peening and Nano Peen™ polishing for optimal durability and surface finish.
  • Equipped with a significantly smaller, lighter retainer to reduce valve mass, improve high-rpm response and ensure smoother operation.
  • Developed to meet the most demanding requirements of high-performance engines fitted with fast-rise camshafts.
  • Compatible with camshafts up to 0.750" lift; no rocker cover modifications required.
  • Offer an extremely high level of fatigue resistance.
  • Validated by track testing and proven on engine dynos.

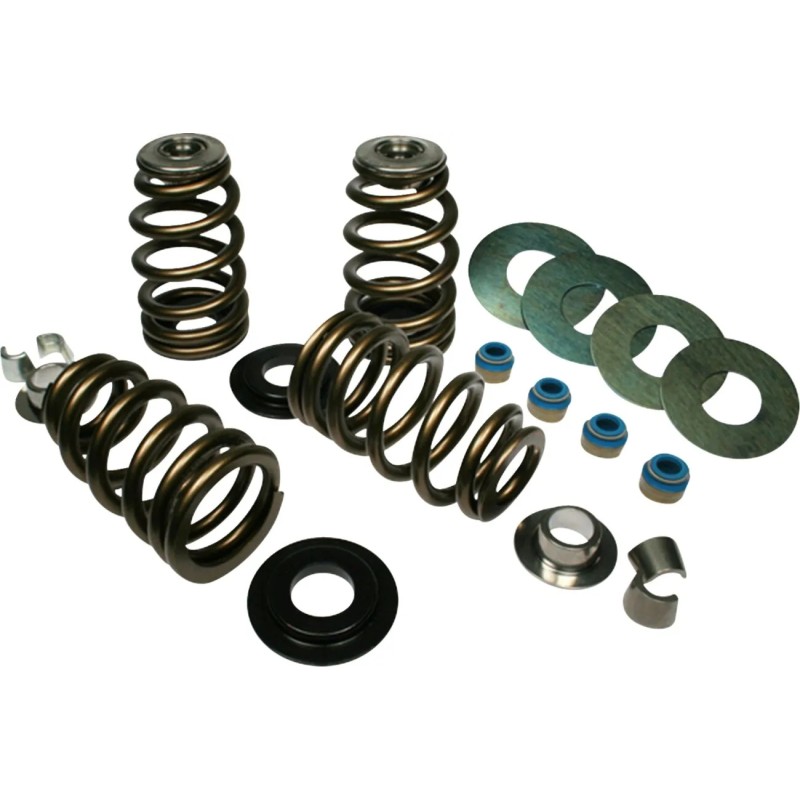

  • Kit includes: High-Load BeeHive® valve springs, lightweight 10° titanium micro-polished Ti-17 alloy retainers for increased longevity, machined and heat-treated chromoly spring seats, shims, valve keepers, and a set of premium Viton® seals with a spring-loaded wiper system.
  • Made in the USA.
  • Seat load / installed height specifications:
  • 170 lb at 1.935" (0.720" of lift)
  • 185 lb at 1.900" (0.685" of lift)
  • 200 lb at 1.845" (0.630" of lift)
  • 208 lb at 1.819" (0.604" of lift)
  • 215 lb at 1.800" (0.585" of lift)
  • 217 lb at 1.789" (0.574" of lift)
  • 415 lb at 1.215" open height
  • Maximum compression (coil bind) at 1.125"
  • Valve springs must be installed at the specified open height, in accordance with the indicated maximum lift and open height.
  • The Feuling® BeeHive® spring kit is a direct replacement requiring no machining or rocker cover modification. Compatible up to 0.574" lift for Big Twin '84-'04 and XL '86-'03, and up to 0.700" for Twin Cam '05-'17. Higher-lift camshafts may require valve guide machining to allow seal clearance.
FEULING PARTS
09260853
6 Items

Data sheet

Matériau du collier
Titane
Rehausse du ressort
0,750"
0,750"
Application
Échappement, Admission
Marque
FEULING PARTS
Référence fournisseur
1200
Modèle
High-Load Beehive
Nom du produit
Kit ressorts
Type
Soupape
Unités
Kit
Matière
Acier
