HD-03 - Four-Piece LCD Gauge Kit
search
  • HD-03 - Four-Piece LCD Gauge Kit
  • HD-03 - Four-Piece LCD Gauge Kit
  • HD-03 - Four-Piece LCD Gauge Kit
  • HD-03 - Four-Piece LCD Gauge Kit
  • HD-03 - Four-Piece LCD Gauge Kit

HD-03 - Four-Piece LCD Gauge Kit

€1,099.88
€989.89 Save 10%
Tax included

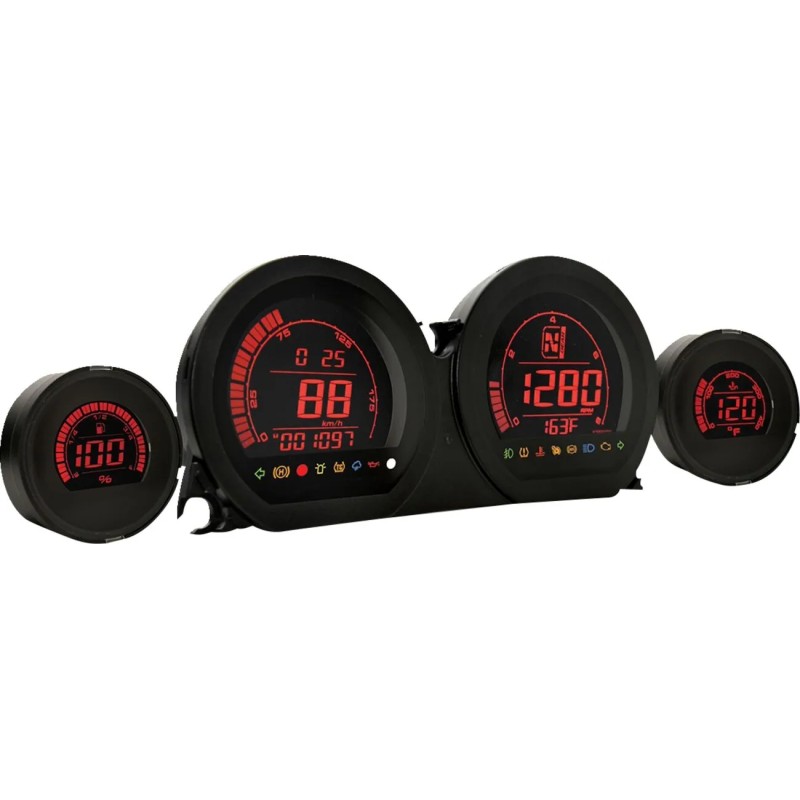

Plug-and-play instrument cluster that installs directly on the dashboard using the original connectors, with a customizable color LCD display. Combines speedometer, tachometer, odometer, gear position indicator, trip meters, engine and oil temperature gauges plus fuel gauge, warning lights (oil, check engine, high beam, fog lights, turn signals), and an optional air pressure sensor.
Quantity

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Plug-and-play — simple, immediate installation without complex modifications.
  • Installs directly on the dashboard and fits the vehicle's original connectors.
  • Color LCD display with customizable tint options.
  • Combines multiple instruments: multifunction speedometer, tachometer, odometer, gear indicator, trip meters, engine and oil temperature gauges, and fuel level.
  • Equipped with warning indicators: oil, check engine, general warning, high beam, fog lights, and turn signals.
  • Optional air pressure sensor available separately for models with air suspension.
  • General specifications:
  • Tachometer: range 0 - 9,999 RPM; shift light adjustable between 2,000 and 8,000 RPM; maximum RPM setting 0 - 8,000 RPM.
  • Speedometer: range 0 - 199 MPH, max speed recording 0 - 199 MPH, overspeed alert adjustable from 19 to 199 MPH.
  • Odometer: total 0 - 999,999 miles; trip meters A/B 0 - 9,999 miles; service interval adjustable from 300 to 10,000 miles.
  • Engine temperature: standard or customizable mode; oil temperature gauge 32 °F - 248 °F, max recorded oil temperature 32 °F - 248 °F; operating temperature range 14 °F - 140 °F.
  • Fuel gauge: 6 levels (1 level = 16.6%), tank volume setting (Off / 1 - 9.9 US gallons), average consumption display (Off / MPG) and remaining range 0 - 6,249 miles.
  • Voltmeter: measures DC voltage between 8V and 18V; nominal operating voltage DC 12V.
KOSO NORTH AMERICA
22100663
6 Items

Data sheet

Width
95 mm (3-3/4"), 70 mm (2-3/4")
Depth
51 mm (2"), 44,45 mm (1-3/4")
Couleur du boîtier
Black
Couleur du cadran
Black
Style
Électronique
Longueur
70 mm (2-3/4"), 27 cm (10-5/8")
Marque
KOSO NORTH AMERICA
Référence fournisseur
BA064902
Modèle
HD-03
Nom du produit
Kit indicateur
Type
Multi-Function
Unités
Kit
