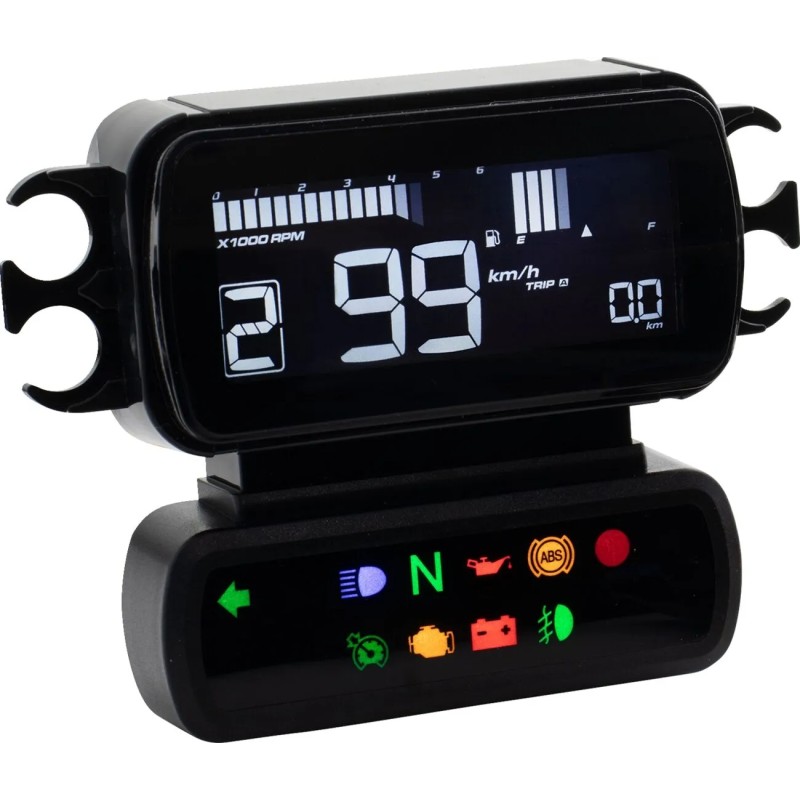

D2 LCD Multifunction Meter
search
  • D2 LCD Multifunction Meter
  • D2 LCD Multifunction Meter
  • D2 LCD Multifunction Meter

D2 LCD Multifunction Meter

€197.66
€177.89 Save 10%
Tax included
8-color replaceable LCD gauge with quick-connect, designed for mounting under the upper triple clamp (may require a riser kit). Combined tachometer/speedometer with shift light and gear-position indicator; displays engine temperature, battery voltage and warning lights; CAN-bus compatible; 0–124 mph; 12 V. Kit includes: gauge, adapter housing, clamp. For XL models, fuel sender 6120008 required separately.
Quantity

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • High-quality quick-connect measuring unit equipped with a replaceable 8-color LCD screen.
  • Designed for mounting under a cut top triple clamp (upper yoke) for a clean, aesthetic finish (depending on the model, a handlebar riser kit with cutout for indicators or an indicator relocation kit may be required).
  • Combined speedometer/tachometer with a programmable shift light and a gear position indicator.
  • Displays essential information such as engine temperature, battery voltage, or tire pressure, and includes multiple indicator lights for monitoring the motorcycle's vital functions.
  • Plugs directly into the stock wiring harness and is compatible with CAN-bus systems.
  • Speed display range: 0–124 mph.
  • Operating temperature range: -4 °F to 185 °F (−20 °C to 85 °C).
  • Operating voltage: 12 V DC.
  • Dimensions: 3-7/16" (L) x 1-1/16" (W) x 2-5/8" (H).
  • For XL models, separate purchase of the original fuel level sender kit (part no. 6120008) may be required to ensure proper operation of the fuel gauge.
  • Kit contents: 1 × LCD gauge, 1 × adapter housing, 1 × cable tie (4.6 × 300 mm).
  • Installation illustrations are for explanatory purposes only; the surrounding frame (mount) is not included.
KOSO NORTH AMERICA
22100607
15 Items

Data sheet

Width
27 mm (1-1/16")
Depth
66 mm (2-5/8")
Couleur du boîtier
Black
Calibrage
0 km/h - 199 km/h
0 km/h - 199 km/h (0 mph - 124 mph)
0 mph - 124 mph
Couleur du cadran
Black
Longueur
88 mm (3-7/16")
Marque
KOSO NORTH AMERICA
Référence fournisseur
BA080000
Modèle
D2
Nom du produit
Indicateur
Type
Compteur de Vitesse Multifonction
Unités
Kit
