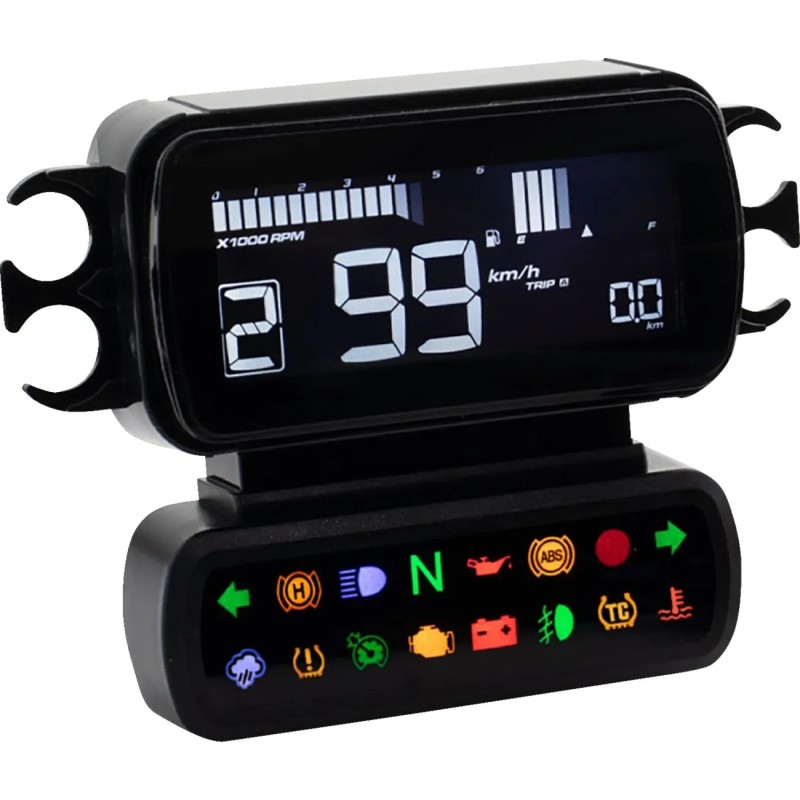

D2 LCD Multifunction Meter

€313.57
€282.21 Save 10%
Tax included
Quick-connect speedometer/tachometer with a replaceable 8-color LCD, designed for mounting under the upper triple clamp. Displays speed (0–124 mph), RPM, current gear, programmable shift light, temperature (−20–85 °C), battery voltage, tire pressure and indicator lights. CAN-bus compatible; supplied with adapter housing and clamp. Mounting frame/bracket not included; for XL models the fuel sensor (part no. 6120008) may be required.
Quantity

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • High-quality plug-and-play gauge equipped with a replaceable 8-color LCD display.
  • Designed to be mounted under a cut upper clamp for a clean look; depending on the model, a handlebar riser kit with indicator cutouts or an indicator relocation kit may be required.
  • Combined tachometer/speedometer function with programmable shift-light and gear-engaged indicator.
  • Displays essential information such as engine temperature, battery voltage, or tire pressure, and includes various indicator LEDs monitoring the motorcycle's vital parameters.
  • Plugs directly into the OEM wiring harness and is compatible with CAN-bus systems.
  • Speed display range: 0–124 mph.
  • Effective temperature range: -4 °F to 185 °F (-20 °C to 85 °C).
  • Operating voltage: 12 V DC.
  • Dimensions: 3-7/16 in (L) x 1-1/16 in (W) x 2-5/8 in (H).
  • For XL models, it may be necessary to purchase the OEM fuel level sensor kit (part no. 6120008) separately to ensure proper operation of the fuel gauge.
  • Kit contents: 1 x LCD gauge, 1 x adapter housing, 1 x cable tie (4.6 x 300 mm).
  • Installation diagrams provided are for illustrative purposes only; the surrounding frame is not included.
KOSO NORTH AMERICA
22100662
9 Items

Data sheet

Width
27 mm (1-1/16")
Depth
66 mm (2-5/8")
Couleur du boîtier
Black
Calibrage
0 km/h - 199 km/h
0 km/h - 199 km/h (0 mph - 124 mph)
0 mph - 124 mph
Couleur du cadran
Black
Longueur
88 mm (3-7/16")
Marque
KOSO NORTH AMERICA
Référence fournisseur
BA080030
Modèle
D2
Nom du produit
Indicateur
Type
Compteur de Vitesse Multifonction
Unités
Kit
