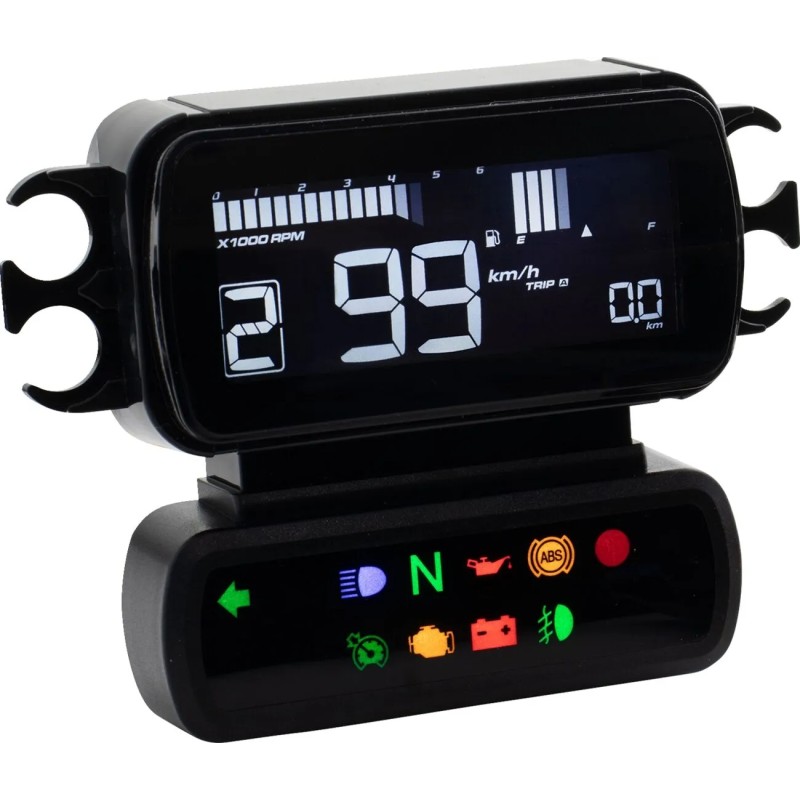

D2 LCD Multifunction Meter
search
  • D2 LCD Multifunction Meter
  • D2 LCD Multifunction Meter
  • D2 LCD Multifunction Meter

D2 LCD Multifunction Meter

€258.23
€232.41 Save 10%
Tax included
Plug-and-play gauge with interchangeable 8-color LCD screen, designed for mounting under the top yoke (riser/relocation kits available). Combined tachometer/speedometer 0–124 mph, programmable shift indicator, gear position indicator, displays engine temperature, voltage and tire pressure; CAN-bus compatible, 12 V. Kit includes: gauge, adapter housing, mounting clamp. Images for illustration only; frame not included.
Quantity

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • High-quality quick-connect gauge with a replaceable 8-color LCD
  • Designed to be mounted under the cut upper triple clamp to provide a clean look (depending on the model, a handlebar riser kit with an indicator cutout or an indicator offset kit may be required)
  • Tachometer/speedometer combination with a programmable shift light and gear-position indicator
  • Displays essential data such as engine temperature, battery voltage, or tire pressure, and includes multiple indicator lights for monitoring the motorcycle's vital parameters
  • Connects directly to the OEM wiring harness and is CAN-bus compatible
  • Speed display range: 0–124 mph
  • Operating temperature range: -4 °F to 185 °F (-20 °C to 85 °C)
  • Supply voltage: 12 V DC
  • Dimensions: 3-7/16" (L) x 1-1/16" (W) x 2-5/8" (H)
  • For XL models, the separate purchase of the original fuel level sensor kit (ref. 6120008) may be required to ensure proper operation of the fuel gauge
  • Kit contents: 1 LCD gauge, 1 adapter housing and 1 cable tie (4.6 x 300 mm)
  • Installation illustrations are provided for guidance only; the surrounding frame is not included
KOSO NORTH AMERICA
22100661
4 Items

Data sheet

Width
27 mm (1-1/16")
Depth
66 mm (2-5/8")
Couleur du boîtier
Black
Calibrage
0 km/h - 199 km/h
0 km/h - 199 km/h (0 mph - 124 mph)
0 mph - 124 mph
Couleur du cadran
Black
Longueur
88 mm (3-7/16")
Marque
KOSO NORTH AMERICA
Référence fournisseur
BA080020
Modèle
D2
Nom du produit
Indicateur
Type
Compteur de Vitesse Multifonction
Unités
Kit
