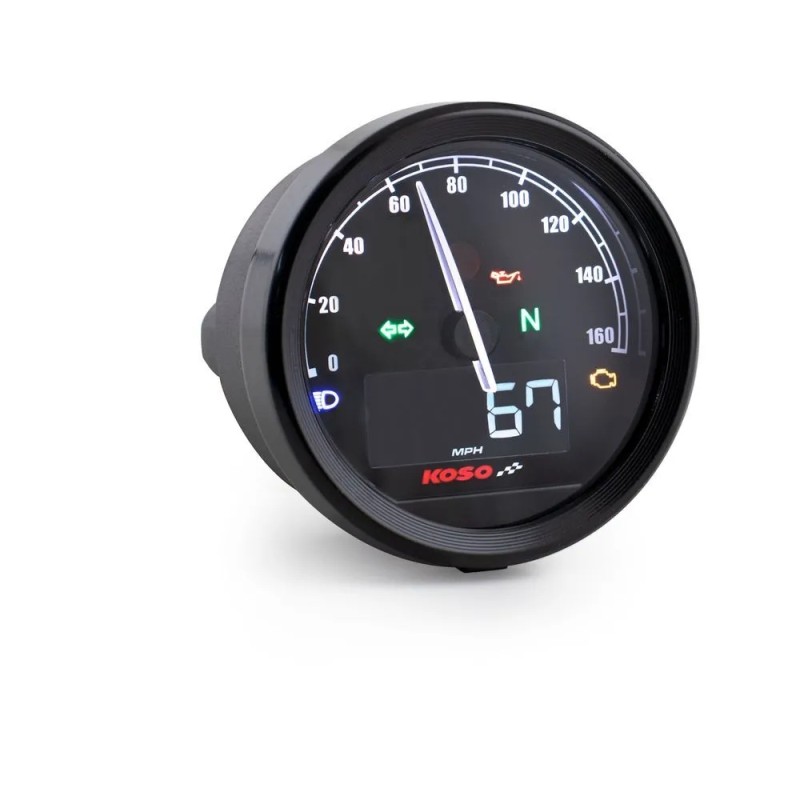

D60-HD TNT-05 Speedometer with ABE

Name: D60-HD TNT-05 Speedometer with ABE
Brand: KOSO NORTH AMERICA
SKU: 22110204
Price: 199.21 EUR
Availability: InStock

€221.34

€199.21 Save 10%

Tax included

60 mm multifunction gauge (DC 12V): speed 0–160 km/h (switchable km/h or mph) with adjustable speed alert 30–160 and max speed display; odometer 0–99,999 km; trip meters A/B; tire circumference adjustment; temperature 0–250 °C with alert; 10-level fuel gauge with alert; voltmeter 8–18 V with alert; 12/24-hour clock; adjustable multicolor backlight.

Garanties sécurité

(à modifier dans le module "Réassurance")

Politique de livraison

(à modifier dans le module "Réassurance")

Politique retours

(à modifier dans le module "Réassurance")

Description
Product Details

Multifunction gauge for displaying and managing speed and alerts.
Speedometer range: 0–160 km/h (MPH) with major scale graduations every 20 km/h (MPH) and minor scale graduations every 10 km/h (MPH).
Speed alert function: adjustable from 30 to 160 km/h (19 to 100 MPH). The indicator lights when the set value is reached or exceeded; adjustable in 1 km/h (MPH) increments.
Maximum recorded speed display: range 0–160 km/h (MPH), manual reset possible, 1 km/h (MPH) increments.
Odometer: settable and displayable from 0 to 99,999 km (miles), in 1 km (mile) increments.
Trip meters A and B: range 0.0–9,999.9 km (mile), manual reset, displayed to one decimal place (0.1 km/mile).
Wheel circumference setting: 300–2,500 mm, adjustable to the millimeter (1 mm increments).
Sensitivity setting: range 1–20 P, in 1 P increments.
Temperature display: 0.0–250.0 °C (32.0–482.0 °F) with 0.1 °C (°F) increments.
Overheat alert: threshold adjustable between 60 and 250 °C (140–482 °F). The indicator activates when the threshold is reached; adjustable in 1 °C (°F) increments.
Maximum temperature display: range 0.0–250.0 °C (32.0–482.0 °F), manual reset possible, 0.1 °C (°F) increments.
Fuel gauge: displayed on 10 levels corresponding to 100%, with one-level increments (10%).
Fuel gauge settings: options 100 O, 250 O, 270 O, 390 O, 510 O, 1200 O, Sw, Custom (learning mode) and OFF.
Low fuel alert: adjustable range 0–30%. The indicator lights when the set value or lower is reached, adjustable in 10% steps.
Clock: configurable in 24-hour mode (00:00–23:59) or 12-hour mode (01:00–12:59).
DC voltmeter: displays 8.0–18.0 V with 0.1 V DC increments.
Low voltage alert: adjustable between 8.0 and 13.0 V; the indicator lights when the measured voltage is equal to or below the set threshold (0.1 V increments).
Composite alert indicator settings: options for Low Fuel (LFUEL), Low Voltage (VOLT) and Overheat (TEMP) with alert modes Steady (L), Slow Flash (S), Fast Flash (F) or OFF.
Backlight brightness adjustable in 5 levels: 1/5 (darkest) to 5/5 (brightest), in 1/5 (20%) steps.
Backlight colors: white, red, orange, yellow, green, blue, light blue, purple and cyclic color-switch mode.
Available speed units: km/h and MPH.
Available temperature units: °C (Celsius) and °F (Fahrenheit).
Operating voltage: DC 12 V.
Operating and storage temperatures: operating -10 to +60 °C; storage -20 to +80 °C.
Gauge diameter: 60 mm.
Indicator light colors: high beam (blue), turn signal (green), composite alert (red), speed alert (red), engine oil (red), neutral (green), check engine (amber).

Brand KOSO NORTH AMERICA

Reference 22110204

In stock 5 Items

Data sheet

Width: 60,00 mm (2,36")
Couleur du boîtier: Black
Calibrage: 0 km/h - 160 km/h
Couleur du cadran: Black
Style: MPH, km/h
Longueur: 60,00 mm (2,36")
Marque: KOSO NORTH AMERICA
Référence fournisseur: BA085004
Caractéristiques: 7 couleurs sélectionnables, Clignotants, Éclairage de fond, Sonde de température comprise
Nom du produit: Compteur de vitesse
Type: Thermomètre, Compteur de vitesses numérique, Odomètre numérique, Jauge d'essence numérique, Horloge numérique, Compteur de vite
Unités: Kit
