D2 LCD Multifunction Meter

€258.23
Tax included

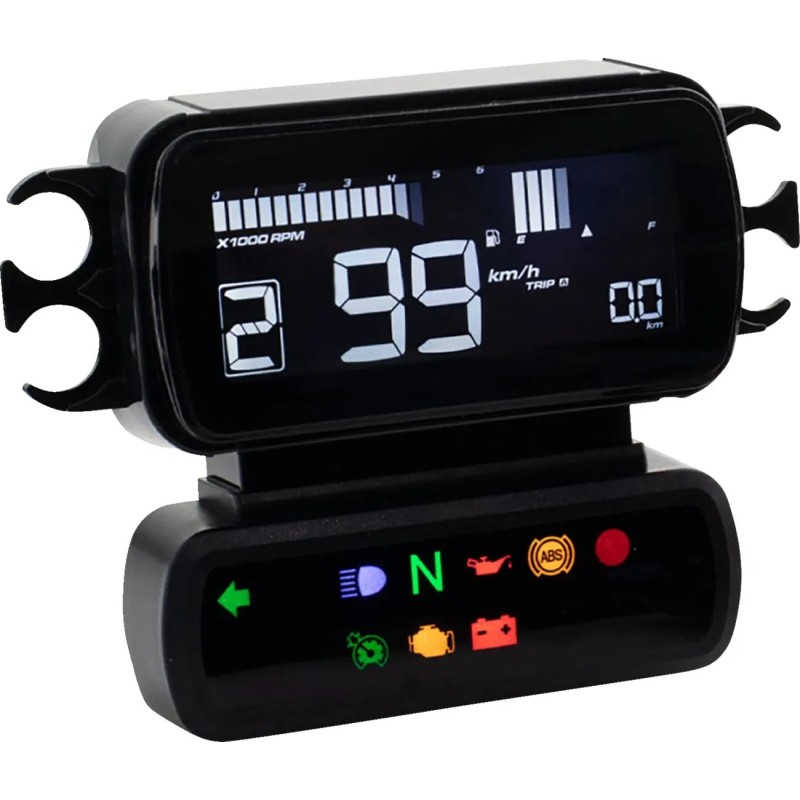

Quick-connect LCD instrument cluster with a user-selectable 8-color display, designed to mount under the bar clamp for a clean look. Combines speedometer, tachometer, programmable shift light, and gear indicator. Displays engine temperature, battery voltage, and tire pressure. Plug-and-play with the OEM wiring harness, CAN-bus compatible. Kit includes adapter interface box.
Quantity

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Premium quick-connect instrument gauge featuring a replaceable 8-color LCD display
  • Designed for installation under a cutout top clamp to deliver a clean look (depending on the model, a handlebar riser kit with indicator light cutouts or an indicator light relocation kit may be required)
  • Integrates a tachometer, speedometer, programmable shift light, and gear position indicator
  • Displays key data such as engine temperature, battery voltage, and tire pressure, and includes multiple indicator lights for vital motorcycle functions
  • Direct connection to the original wiring harness and compatible with the CAN-bus system
  • Display range: 0–124 mph
  • Operating temperature range: -4 °F to 185 °F (-20 °C to 85 °C)
  • Battery voltage: 12 V DC
  • Dimensions: 3-7/16" (L) x 1-1/16" (W) x 2-5/8" (H)
  • For XL models, the separate purchase of OEM fuel level sensor kit 6120008 may be required for the fuel gauge to function properly
  • Kit contents: 1 LCD gauge, 1 adapter housing, and 1 cable tie (4.6 x 300 mm)
  • Installation illustrations are for reference only. The wrap-around frame is not included.
KOSO NORTH AMERICA
22100660
8 Items

Data sheet

Marque
KOSO NORTH AMERICA
KOSO NORTH AMERICA
Référence fournisseur
BA080010
BA080010
Width
27 mm (1-1/16")
Depth
66 mm (2-5/8")
Couleur du boîtier
Black
Calibrage
0 km/h - 199 km/h
0 km/h - 199 km/h (0 mph - 124 mph)
0 mph - 124 mph
Couleur du cadran
Black
Type
Compteur de Vitesse Multifonction
Compteur de Vitesse Multifonction
Unités
Kit
Kit
Nom du produit
Indicateur
Indicateur
Modèle
D2
D2
Longueur
88 mm (3-7/16")
