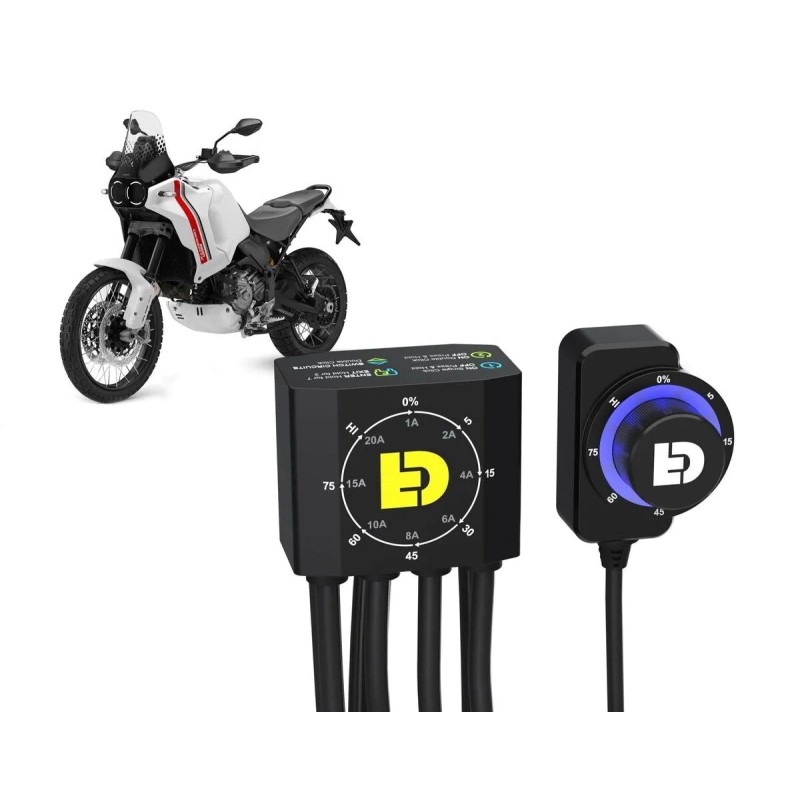

Dialdim Lighting Controller

€356.95
Tax included
DialDim™ switch for auxiliary lights: two independent dimmable circuits with blue/green halos. High/Low sync via headlight, Stealth mode, turn-signal cancel, amber turn signals, and horn-activated strobe. Adjustable electronic fuses, low-voltage indicator and cutoff. 12 VDC, up to 20 A per circuit.
Quantity

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • On/Off and dimming – Control two groups of lights independently and adjust their brightness via the DialDim™ switch. A blue halo identifies the first circuit, a green halo the second. A double-click lets you instantly switch from one circuit to the other.
  • High/Low Sync – The auxiliary lights automatically alternate between the selected brightness and full power using the OEM headlight switch. Simply connect the blue wire to the headlight circuit to enable this synchronization.
  • Stealth Mode – At the 0% position, the lights remain off during normal riding, then jump to 100% when the high beams are activated. They also respond to the turn signals and horn, while staying off when no signal is present.
  • Turn-signal cut-off – Once enabled, the main lights (blue circuit 1) turn off in cadence with the turn signal so as not to obscure the OEM indicator. Just connect the yellow and orange wires to the vehicle’s turn-signal circuit.
  • Turn-signal function – When enabled, the amber visibility lights (green circuit 2) flash in unison with the OEM turn signals. Connect the yellow and orange input wires to the vehicle’s turn-signal circuit to activate.
  • Horn strobe – When active, the auxiliary lights on both circuits flash at 4 Hz when the horn is pressed. Simply connect the green wire to the vehicle’s horn circuit to enable this visual alert.
  • Electronic circuit protection – Both circuits are electronically protected and configured directly from the switch. The halo turns red to indicate a tripped electronic fuse.
  • Voltage indicator – At startup, the button ring lights green if the voltage is correct, or red when the battery drops below 11.8 V.
  • Low-voltage cutoff – If the voltage falls below 10.8 V, the lights will not turn on to prevent excessive discharge. The switch halo flashes with four red LEDs to signal undervoltage.
  • Function activation – For the headlight, turn signal, and horn functions, connect them to the vehicle’s 12 V circuit. To disable, leave the corresponding wire unconnected.
  • Two completely independent light circuits for separate control of each light set.
  • Eight brightness levels per circuit (5%, 15%, 30%, 45%, 60%, 75%, 100%).
  • Eight integrated electronic fuse settings (1 A, 2 A, 4 A, 6 A, 8 A, 10 A, 15 A, 20 A).
  • Five input wires dedicated to functions (ignition, headlight, horn, left turn signal, right turn signal).
  • Current rating: 20 A max per circuit (30 A max combined).
  • Operating voltage: 12 V DC.
DENALI
20500538
4 Items

Data sheet

Marque
DENALI
Référence fournisseur
DNL.WHS.25000
Couleur/finition
Black
Nom du produit
Boîtier de commande pour éclairage
Type
Faisceau de câbles
Unités
Kit
