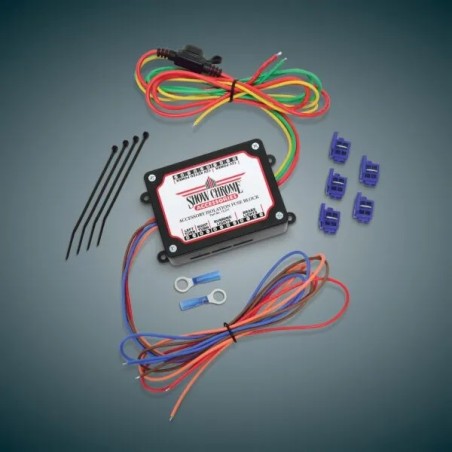

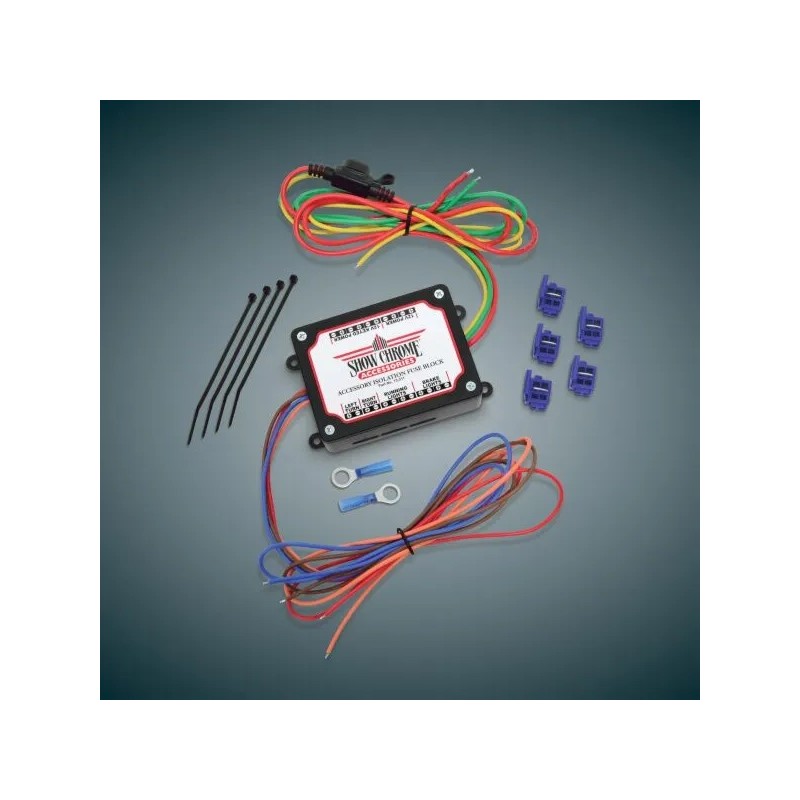

Electronic Fuse Block

€83.11
Tax included
Compact electronic motorcycle fuse block (1 1/8" x 2 3/4" x 3 3/4"). Provides 11 connection points across 9 relay/fuse circuits; mounts to the battery to simplify wiring and isolate accessories. Includes a 20 A fuse and a 30 A relay. Features 3 ignition-switched outputs, 2 constant outputs (5 A/10 A), and terminals for turn signals, running/parking lights, and brake light. Ideal for modern motorcycles.
Quantity
Out-of-Stock

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Big Bike Parts sets a new standard for connecting motorcycle electrical accessories with its latest-generation Electronic Fuse Block.
  • Designed to provide eleven connection points, each benefiting from electronic protection via nine separate relays and fuses.
  • This compact fuse block (1 1/8'' x 2 ¾'' x 3 ¾'') mounts directly to the battery, eliminating additional direct hookups and simplifying accessory wiring.
  • The motorcycle’s electrical system is protected by a 20 A fuse and a separate 30 A relay, ensuring complete isolation of accessories from the main system.
  • Includes 3 switched power outputs (ignition-on) and 2 constant power feeds, protected by 5 A and 10 A fuses.
  • Dedicated terminals for left/right turn signals, 2 circuits for running lights and 2 for brake lights, all isolated by four 8 A 277 V automatic relays for complete separation.
  • An essential universal wiring accessory for adding electrical equipment to modern electronically managed motorcycles.
SHOW CHROME
21300290

Data sheet

volts
12 V
ampères
2,1 A
Marque
SHOW CHROME
Référence fournisseur
13-311
Nom du produit
Boîtier de fusibles
Type
Accessoire, Électronique
Unités
Pièce
