AIR-A Suspension For M-Eight Trike
search
  • AIR-A Suspension For M-Eight Trike
  • AIR-A Suspension For M-Eight Trike
  • AIR-A Suspension For M-Eight Trike

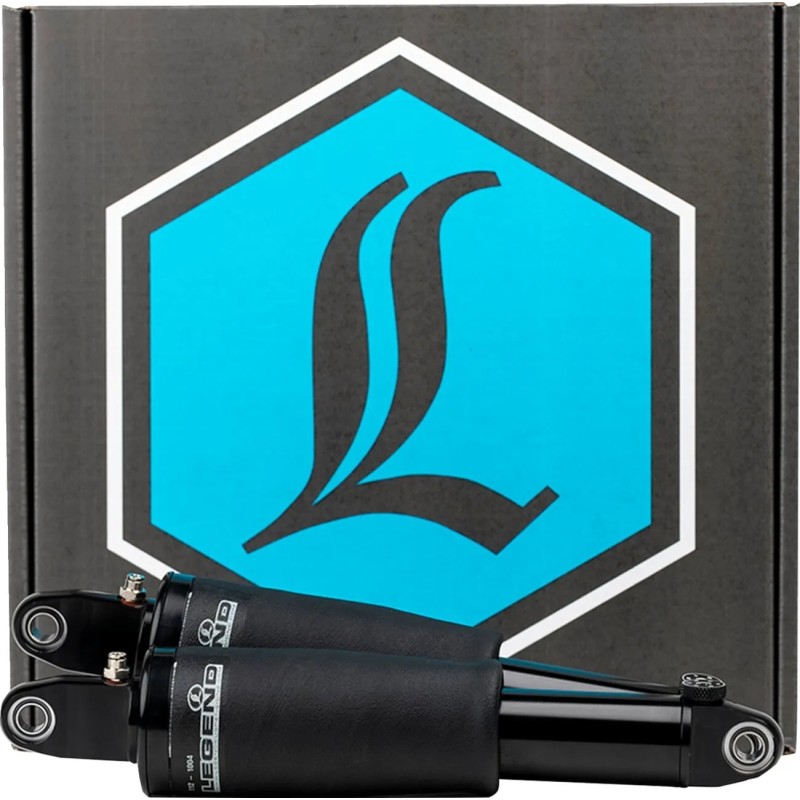

AIR-A Suspension For M-Eight Trike

€2,323.76
€2,091.38 Save 10%
Tax included
Legend AIR 13.6" suspension for 2017+ trikes (stock plates) providing maximum rear ground clearance without a lift kit. Adjustable aramid-fiber air spring (height and spring rate), long travel and six rebound settings. Black machined aluminum body, simplified installation with rod-end bearings (heim joints), pre-wired compressor, Deutsch wiring harness and handlebar controller included; hand-assembled in the USA.
Quantity
Last items in stock

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • 13.6" length to provide maximum rear ground clearance on '17 and newer trikes equipped with stock shock mounts
  • Eliminates the need to install a lift kit
  • Designed to compensate for trikes that have a low rear ride height from the factory
  • Reduces the risk of muffler scraping and wear when crossing gutters, backing into curbs, or loading onto a trailer
  • Improves handling by reducing front rake
  • Legend AIR Suspension systems set the standard for ride comfort
  • Exclusive aramid-fiber air spring technology that allows stiffness adjustment
  • The air springs optimize travel and are adjustable to achieve the desired ride height
  • Simplified installation and alignment thanks to spherical bearings at both mounting points
  • Machined aluminum bodies with Type III hard-coat black anodizing for long-lasting durability
  • Low-friction sealing system and smooth bearings for improved performance and better on-road feel
  • High-flow, responsive piston for optimized fluid flow management
  • Frequency-responsive, self-adjusting deflector disc valves for controlled performance
  • All the benefits of standard AIR suspension, complemented by six external knobs for precise rebound adjustment
  • Finely adjustable rebound to optimize performance and comfort according to rider weight and riding style
  • Supplied with a pre-wired air compressor and model-specific mounting bracket
  • Complete wiring harness supplied ready to install and connects easily via three Deutsch plugs
  • Includes a black OEM-style handlebar controller for easy adjustment on the fly
  • Chrome handlebar controller available as an option, sold separately (Ref. 0616-0207)
  • Matching fairing-mounted gauges offered as options (Refs. 2212-0484, 2212-0485, 2212-0492, 2212-0493, 2212-0494) sold separately
  • Hand-assembled in Sturgis, SD, USA
LEGEND SUSPENSION
13110190
1 Item

Data sheet

Emplacement du réservoir
Interne
Type d'ajustement
amortissement en détente réglable
Taille rallongée
345,44 mm (13,60")
Position de montage
Arrière
Marque
LEGEND SUSPENSION
Référence fournisseur
1311-0190
Couleur/finition
Noir, Anodisé
Modèle
Air-A
Nom du produit
Amortisseur
Type
Air Twin-Tube
Unités
Paire
Matière
Aluminium taillé dans la masse, Fibre d'aramide
