  • 6 Custom Springer Forks

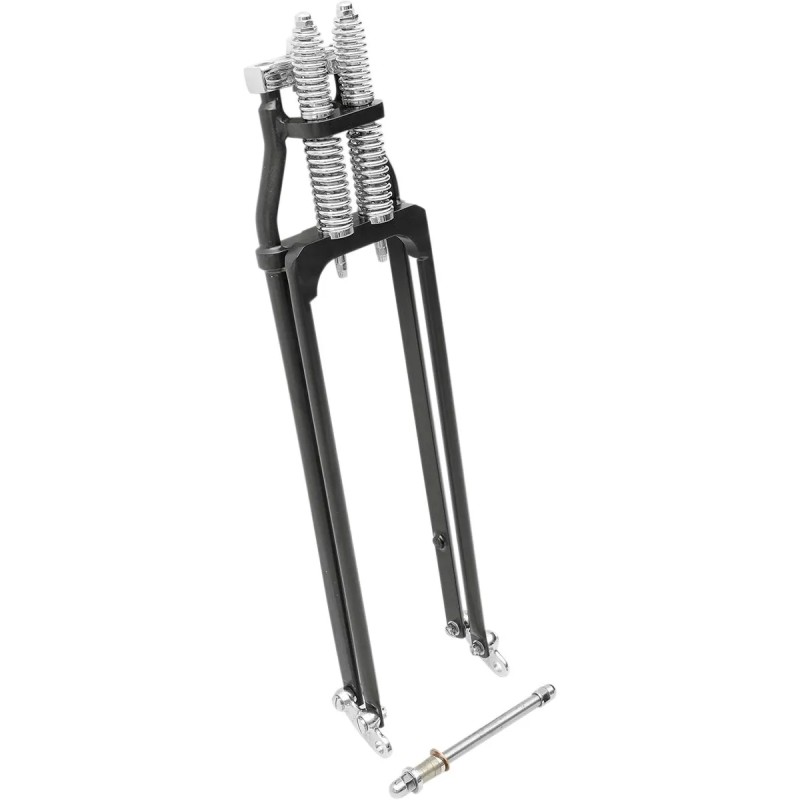

+6" Custom Springer Forks

€649.22
€584.30 Save 10%
Tax included
Economical alternative to a Springer fork with shock: +6" (37" from upper bearing to axle). Fully assembled with aligned top yoke (no rake). 1" stem for Timken bearings. Threaded lower legs for brakes. 3/4" axle kit included (spacers sometimes required). 9-1/4" between link arms. 4-3/4" risers with 1/2"-20 threads. Requires a 3/4" compatible wheel. No headlight bar or fender mounting points.
Quantity
Out-of-Stock

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Economical Springer-style solution equipped with a shock absorber.
  • Forks fully assembled with an aligned upper mounting tab, without integrated rake/offset.
  • Springer +6" version measuring 37" from the upper bearing to the center of the axle.
  • 1" outer-diameter steering stem designed to accept Timken®-style bearings.
  • Both rear fork tubes are threaded, compatible with right- or left-side brake mounting.
  • Includes a 3/4" axle kit with caliper mount, thrust washer, and hub spacers (custom spacers may be required depending on the wheel).
  • 9-1/4" linkage spacing between the rods.
  • Riser mounts are positioned on 4-3/4" centers and feature 1/2"-20 threads.
  • Requires a wheel compatible with an axle having a 3/4" outer diameter.
  • Springer fork measurements are taken from the bottom of the upper triple tree to the center of the axle.
  • Does not support headlight bars and does not include fender mounts.
DRAG SPECIALTIES
04010119

Data sheet

Size
Soulève 152 mm (6")
Marque
DRAG SPECIALTIES
Référence fournisseur
J300016B
Couleur/finition
Black
Nom du produit
Springer
Unités
Pièce
