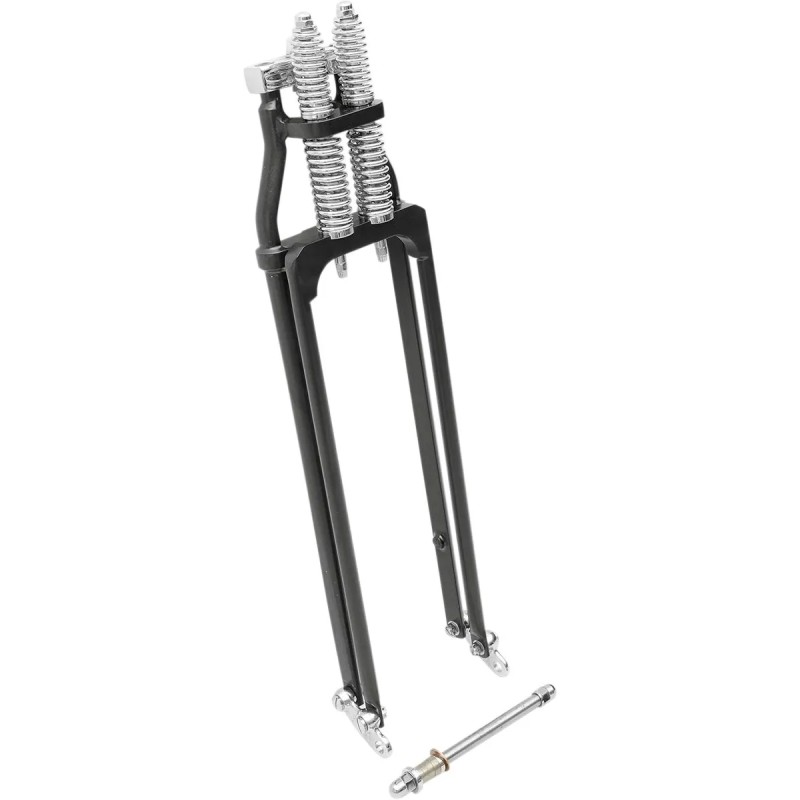

Custom Springer Forks
search
  • Custom Springer Forks

Custom Springer Forks

€760.96
€684.86 Save 10%
Tax included
Economy springer front end, ships assembled; inline top clamp, no rake. Standard 31" length; 1" steering stem for Timken bearings. Rear legs tapped for right- or left-side brake. 3/4" axle kit included; requires a wheel for a 3/4" axle. Riser mounts: 4-3/4" spacing, 1/2"-20 threads. No fender mounts or headlight bar.
Quantity
Out-of-Stock

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Cost-effective alternative to a Springer equipped with a shock absorber
  • Ships fully assembled with the upper mounting tab aligned; no built-in rake
  • Standard 31" version (measured from the upper bearing to the axle), comparable to a stock FXST front end
  • 1" Ø steering stem (outside diameter), designed for Timken®-style bearings
  • Two threaded rear legs for right- or left-side brake mounting
  • 3/4" Ø axle kit (outside diameter) including a brake mounting pivot, a thrust washer, and cupped washers; custom washers may be required depending on the wheel used
  • 9-1/4" center-to-center spacing between the rockers
  • Riser mounts on 4-3/4" centers, with 1/2"-20 threads
  • Requires a wheel compatible with a 3/4" OD axle
  • These Springers are measured from the bottom of the top tree to the center of the axle
  • An auxiliary light bar cannot be installed on a Springer fork; no fender mounting tabs
DRAG SPECIALTIES
04010078

Data sheet

Size
Rabaisse la moto de 50,80 mm (2,00")
Marque
DRAG SPECIALTIES
Référence fournisseur
MU35216
Couleur/finition
Black
Nom du produit
Springer
Unités
Pièce
