Replacement Piston Rings
search
  • Replacement Piston Rings

Replacement Piston Rings

€40.29
Tax included

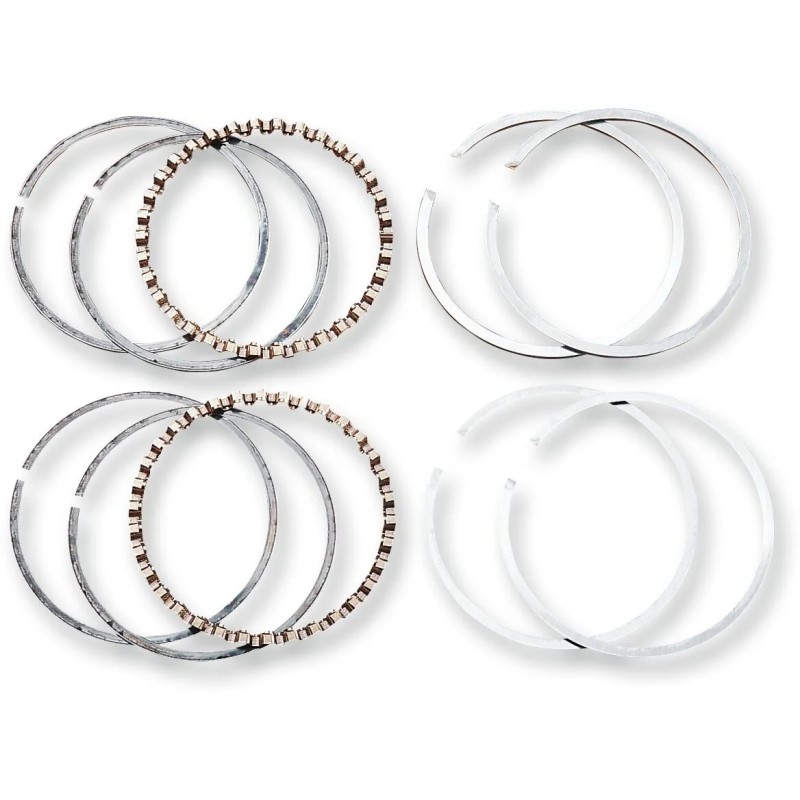

Piston ring kit including crowned upper compression rings, an inverted torsional-cone second ring, and three-piece Flex Vent oil control rings, with a cast coating and machined inverted torsion ring. Provides piston-to-wall heat transfer, gas sealing and oil control via four steel rails and two expanders. Made in the USA — quantity for two pistons.
Quantity

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Kit including top and secondary compression rings as well as oil control rings.
  • Convex-faced top compression rings for optimized contact with the cylinder wall.
  • Cast coating providing improved wear resistance and increased longevity.
  • Designed to promote thermal transfer between the piston and the cylinder wall.
  • Controls combustion chamber gases to allow the piston to effectively transmit energy to the crankshaft.
  • Second compression ring with a conical profile and reverse twist for improved sealing.
  • Promotes lateral sealing to prevent oil from passing under and behind the ring, thereby improving oil consumption.
  • Reverse-twist expander with a machined conical face reproducing the lower scraper OD edge of a positive-twist ring.
  • Three-piece Flex Vent oil control rings for effective oil control.
  • Three-piece design allows for low-section rails for better bore conformity.
  • Provides even pressure with four steel rails and two expanders for optimal oil control.
  • Made in the USA to strict quality standards.
  • Contains enough rings to equip two pistons (unless otherwise specified).
  • Two rings per groove, except for the rails: two rail rings supplied per expander segment.
HASTINGS
DS750642
8 Items

Data sheet

Matériau du segment
Coulé
Style
De rechange
Marque
HASTINGS
Référence fournisseur
WG1149166|6164020
Nom du produit
Jeu de segments de piston
Unités
Lot
Alésage
3,498"
Alésage - surdimensionné
+0,020"
