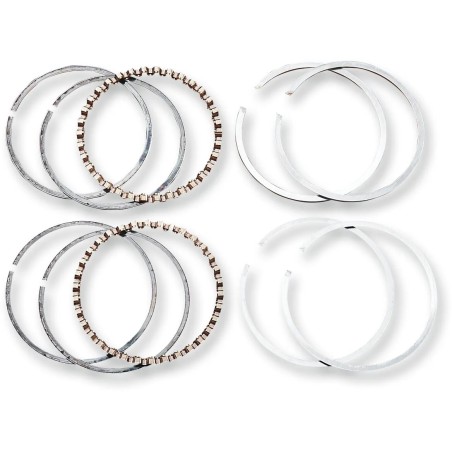

Piston ring set for two pistons including upper (dished-face) compression rings, secondary rings, and three-piece Flex‑Vent oil rings. Cast coating promotes heat transfer and sealing; inverted tapered torsional second ring; four steel rails and two expanders for optimal oil control. Made in the USA.
Quantity

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Includes top compression rings, second compression rings, and oil control rings
  • Top compression rings feature a domed face
  • Cast-applied coating
  • Promotes heat transfer between the piston and the cylinder wall
  • Controls combustion chamber gases to allow the piston to transfer its energy to the crankshaft
  • Second compression ring features a reverse-twist conical profile
  • Improves side sealing to prevent oil from passing under and behind the ring, reducing oil consumption
  • Reverse-twist ring with a machined conical face reproducing the lower scraper edge at the outer diameter (OD) of a positive-twist ring
  • Three-piece Flex Vent–type oil control rings
  • Three-piece design allows thin-section rails for better bore conformity
  • Provides even pressure via four steel rails and two expanders for optimal oil control
  • Made in the USA
  • Contains enough rings to outfit two pistons (unless otherwise indicated)
  • Two rings per groove, except for the rails: two rail segments per expander segment
HASTINGS
DS750640
15 Items

Data sheet

Matériau du segment
Coulé
Style
De rechange
Marque
HASTINGS
Référence fournisseur
WG1010328|6164
Nom du produit
Jeu de segments de piston
Unités
Lot
Alésage
3,498"
Alésage - surdimensionné
Standard
