Replacement Piston Rings
search
  • Replacement Piston Rings

Replacement Piston Rings

€22.98
Tax included

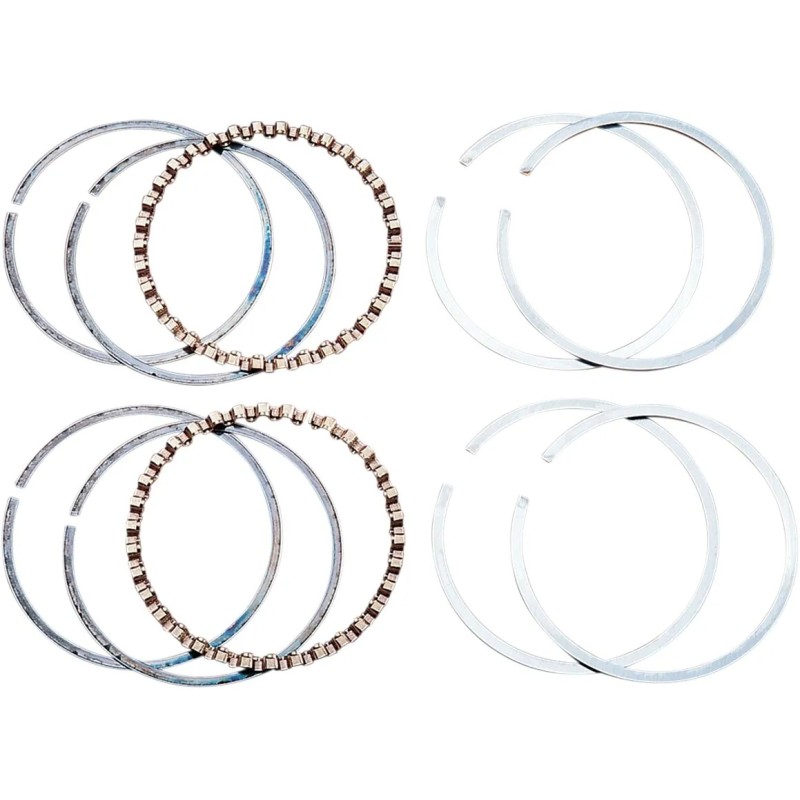

Three-piece ring set (top and second compression rings plus oil control ring) with crowned top rings and cast coating to promote heat transfer and sealing; inverted-torsion conical second ring; three-piece Flex-Vent oil ring with four steel rails and two expanders for oil control. Made in the USA. Quantity for two pistons.
Quantity
Last items in stock

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Complete set including top compression rings, secondary compression rings, and oil control rings
  • Top compression rings with a crowned face for optimized contact with the cylinder wall
  • Cast coating for durability and wear resistance
  • Designed to promote heat transfer between the piston and the cylinder wall
  • Effective control of combustion chamber gases to allow the piston to transmit energy to the crankshaft
  • Second compression ring with a tapered profile and reverse-twist design to improve sealing
  • Helps side sealing to prevent oil from passing under or behind the ring, reducing oil consumption
  • Reverse-twist ring with a machined tapered face that replicates the lower outer-diameter oil-scraping edge of a positive-twist ring
  • Flex-Vent type oil scraper rings in a three-piece design
  • The three-piece design yields low-section rails for improved adaptation to the cylinder bore
  • Provides uniform pressure thanks to four steel rails and two expanders for optimal oil control
  • Made in the USA
  • Contains enough rings to equip two pistons (unless otherwise specified)
  • Two rings per groove, except for the rails: two rail segments per expander segment
HASTINGS
DS750624
2 Items

Data sheet

Matériau du segment
Coulé
Style
De rechange
Marque
HASTINGS
Référence fournisseur
WG1254945|6482040
Nom du produit
Jeu de segments de piston
Unités
Lot
Alésage
3,437"
Alésage - surdimensionné
+0,040"
